Kee Guard® Railing For Roofs With Limited Space - Non-Penetrating Safety Guardrail System

We offer rooftop hazard protection with Kee Guard Rooftop Guardrail

Our modular, free-standing safety guardrail system provides a permanent/temporary, safe and dependable barrier for the roof edge without penetrating the roof membrane. Kee Guard safety railing for roofs with limited space is versatile, easy to assemble, and gives you an innovative approach to durable portable edge protection for roofs up to a 10 degree pitch. In addition to these benefits, it’s EN and OSHA compliant and third-party tested for rooftop guardrail reliability. Your best safety guardrail solution for fall protection that will not damage your roof.

Kee Guard Guardrail For Narrow Roofs - Benefits & Advantages

Roof Edge Safety Rail Protection

On a flat or low slope roof, a protected perimeter limits access to the leading edge. Installing a modular, free-standing safety railing system that does not penetrate the roof membrane provides a permanent, safe and dependable safety guardrail barrier for the roof edge.

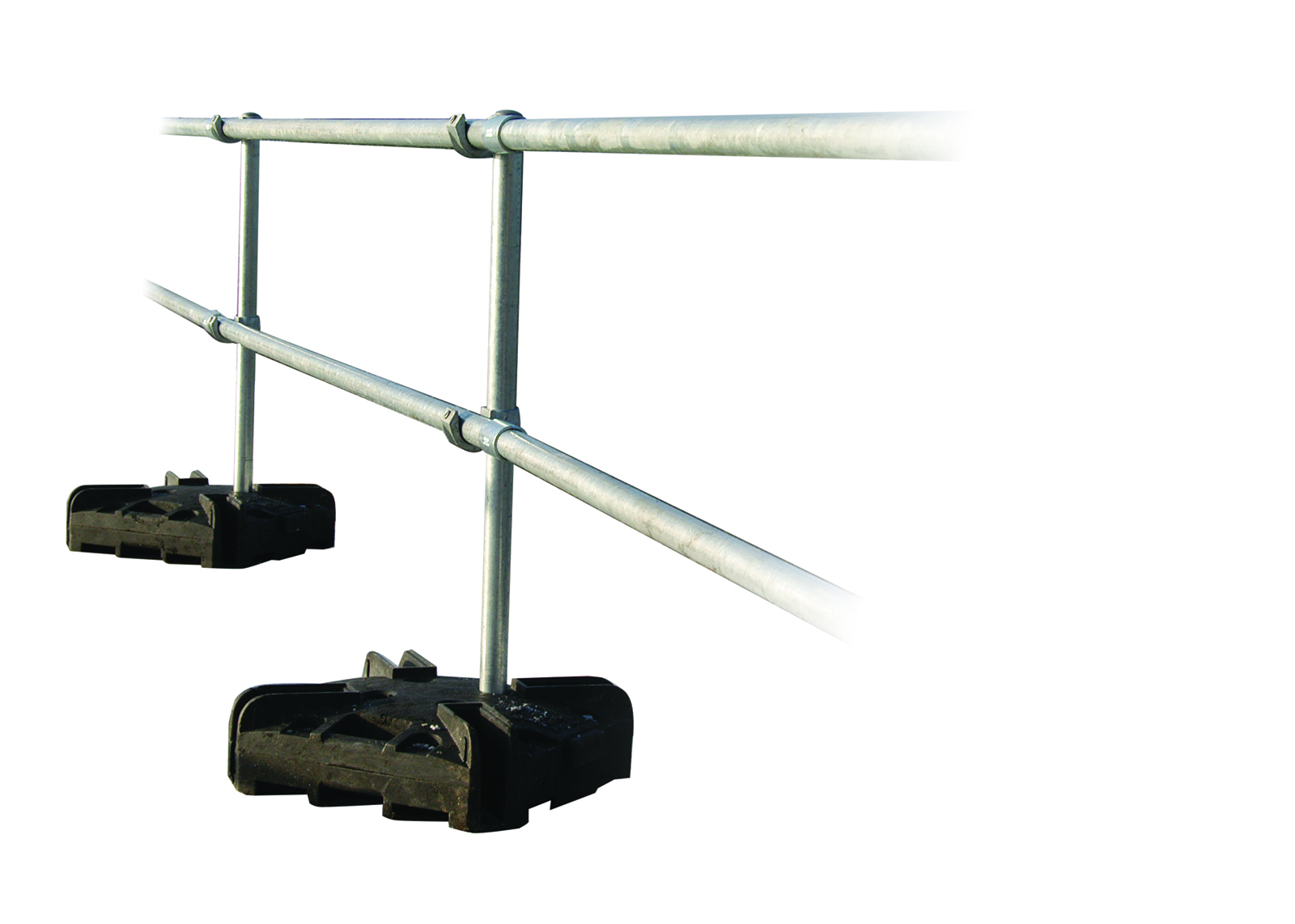

Unique Safety Guardrail Base Design

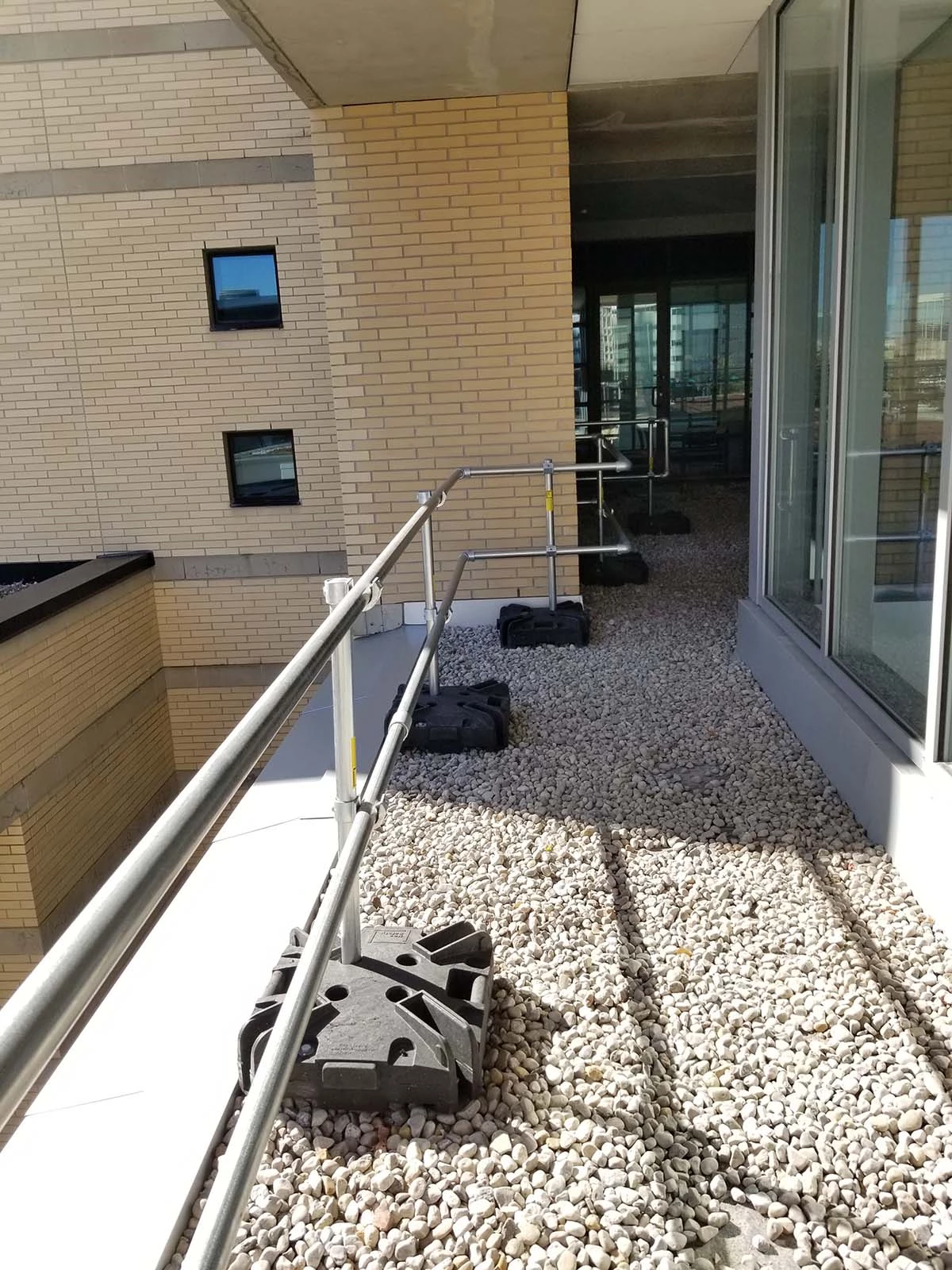

The unique base weights eliminate the need for off-set counterweights, allowing the railing to fit into narrow or awkward spaces, or walkways. This Kee Guard option is suitable for both temporary and permanent applications on roofs of up to 10 degree pitch.

Versatile and easy to install safety railing

There is no welding needed on-site, which means the safety guardrail can be installed with basic tools. Plus the components can be adapted to meet the unique design requirements of non-standard roof applications. Safety railing solutions that are easy to install.

Key Features of Kee Guard For Roofs With Limited Space

No roof penetrations

Suitable for use on concrete, asphalt, PVC, membrane and felt roof surfaces up 10 degrees. Rooftop guardrail that will not damage your roof.

Compliant

Exceeds EN 13374, BS 13700 and OSHA 1910.23(b)(3) and 1926.502(b)(3) standards for fall protection guardrail.

Modular design

It can be easily reconfigured on-site so you have the flexibility to make last minute adjustments.

Integrated toeboard

When toeboards need to be fitted Kee Guard can easily accommodate this.

Corrosion resistant

All iron fittings are galvanised to EN ISO 1461 so the system will last for years without corrosion.

91Kg design load

Even if an operator were to fall heavily against the guardrail they would be protected.

Fast installation

No welding, threading, or bolting is needed so there’s no need for a hot works permit.

Coated to match

The system can be powdercoated or PVC coated to match any RAL colour.

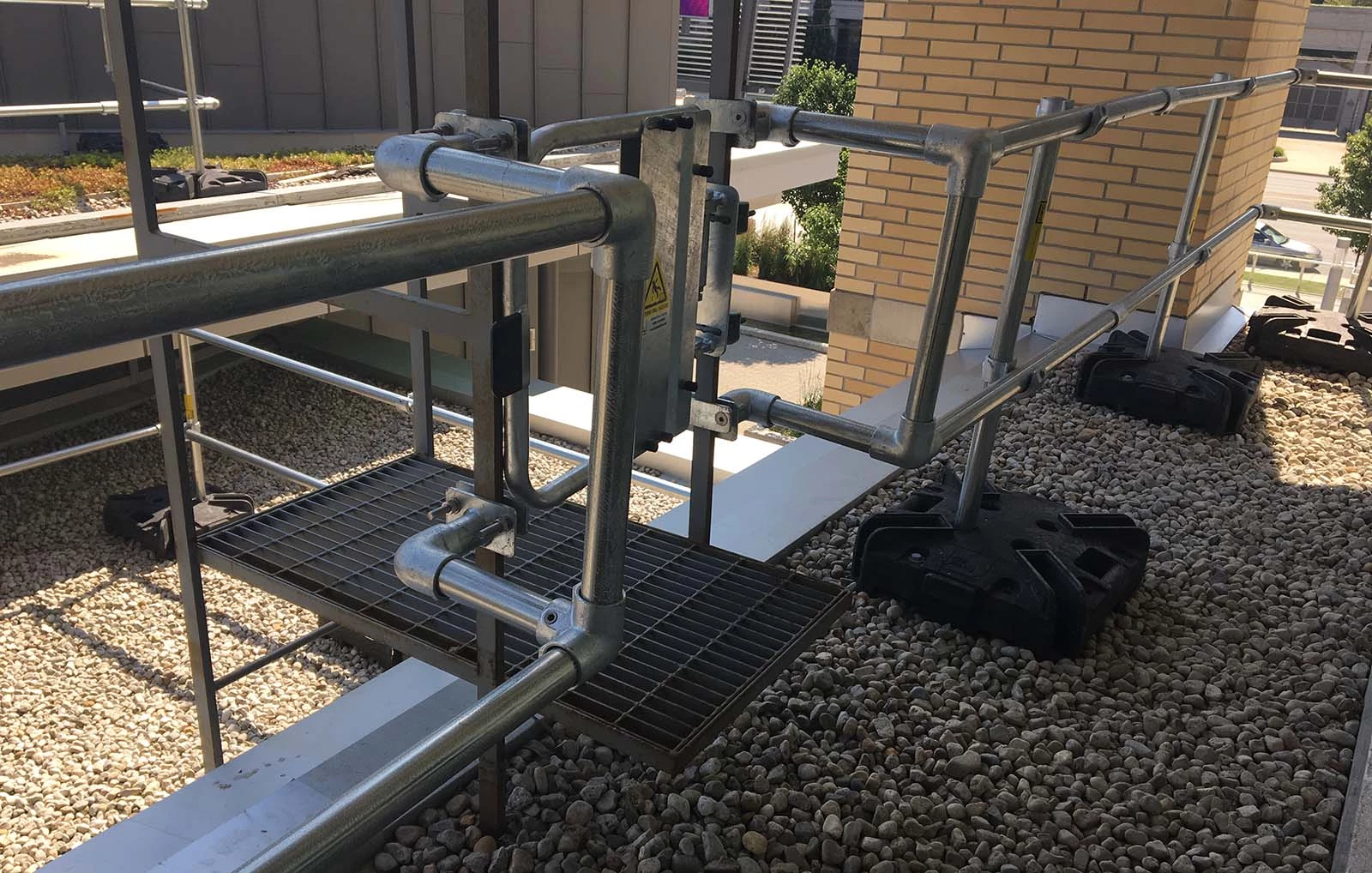

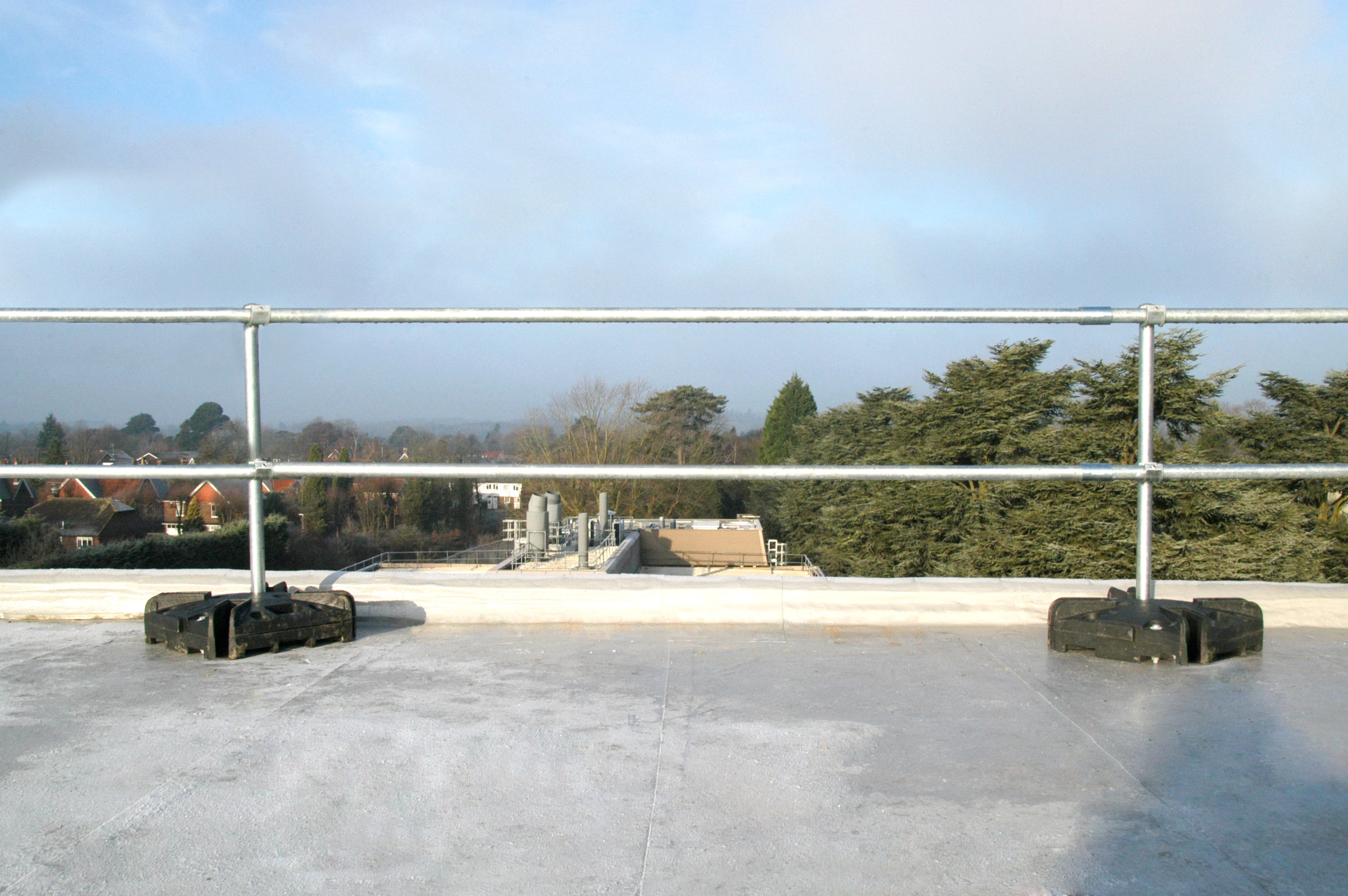

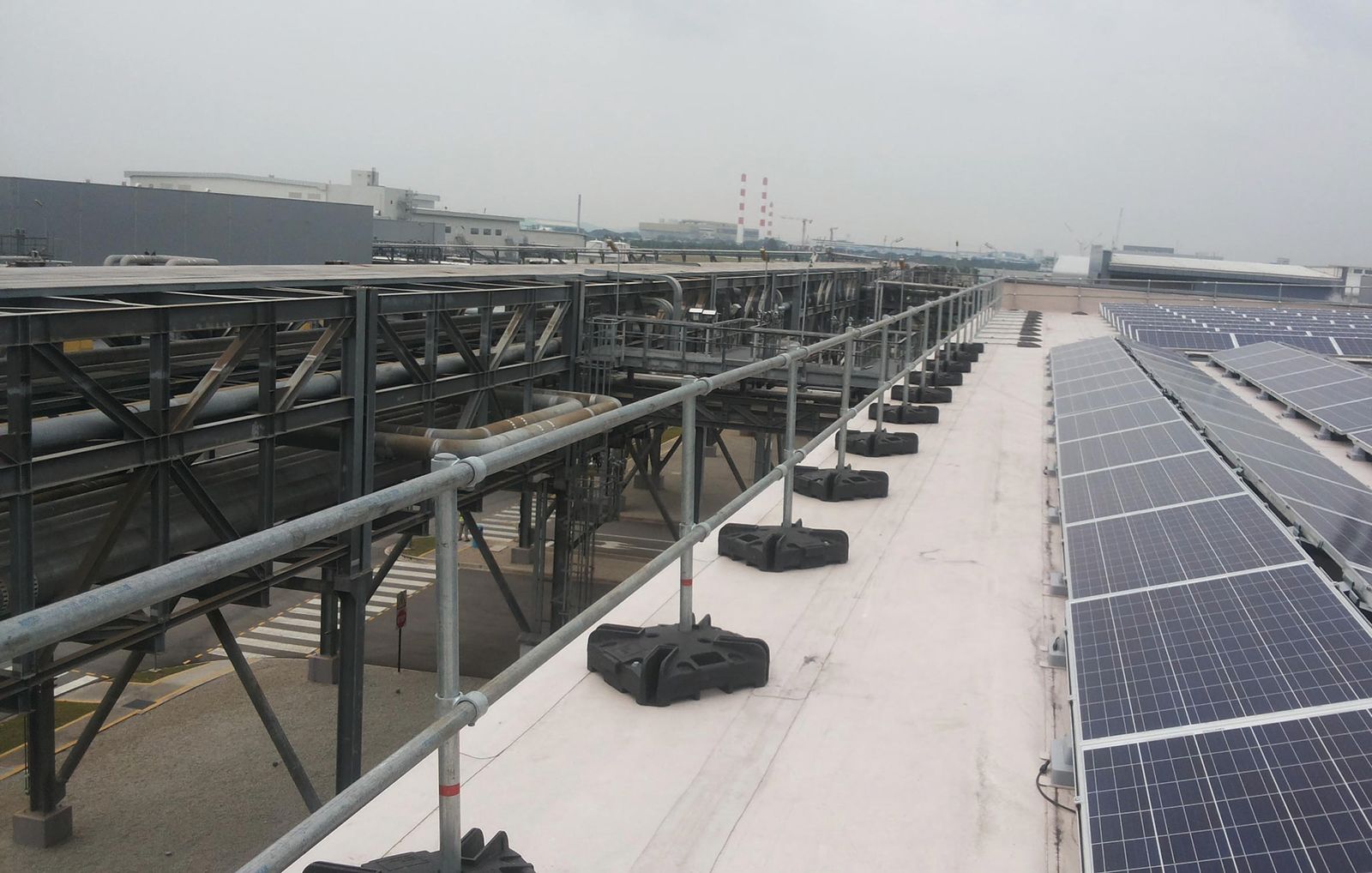

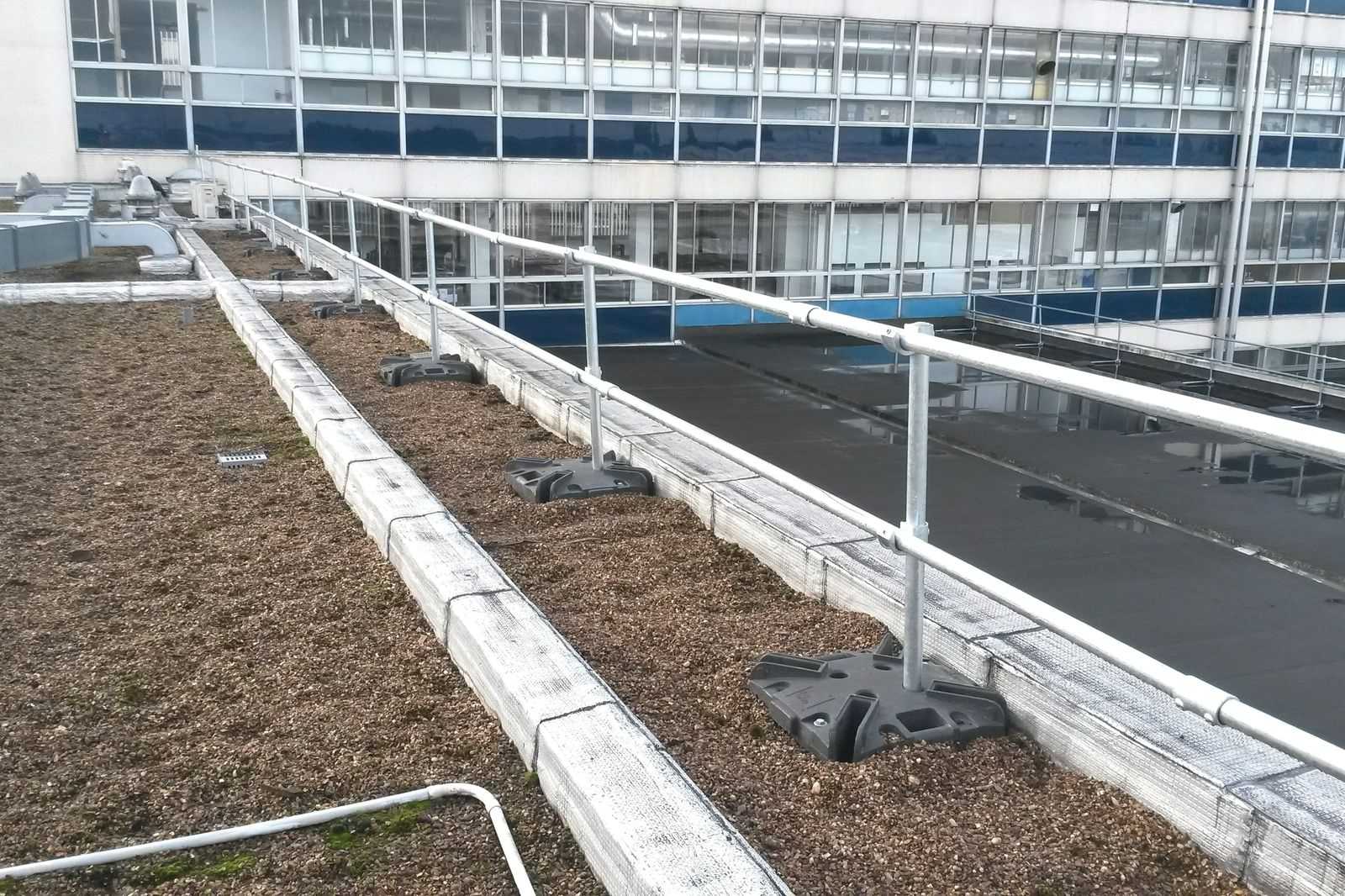

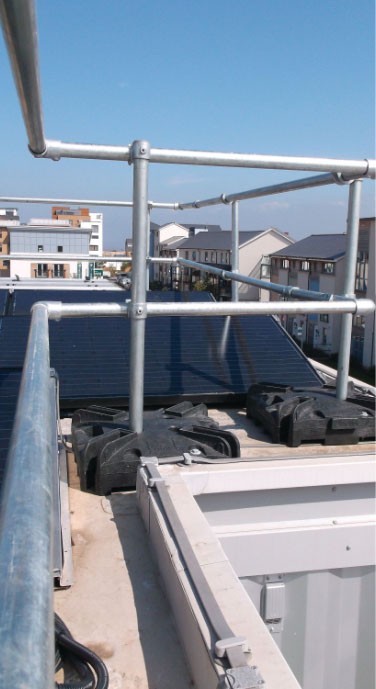

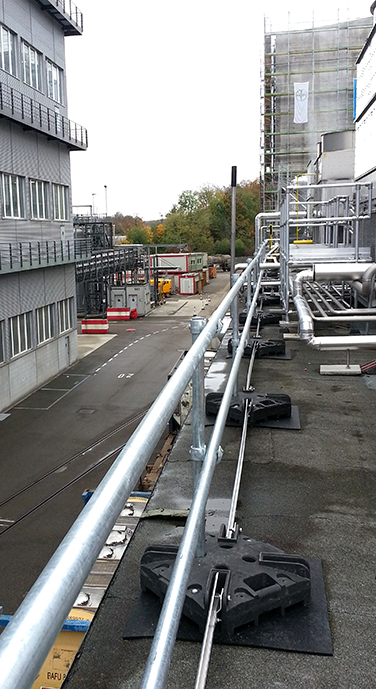

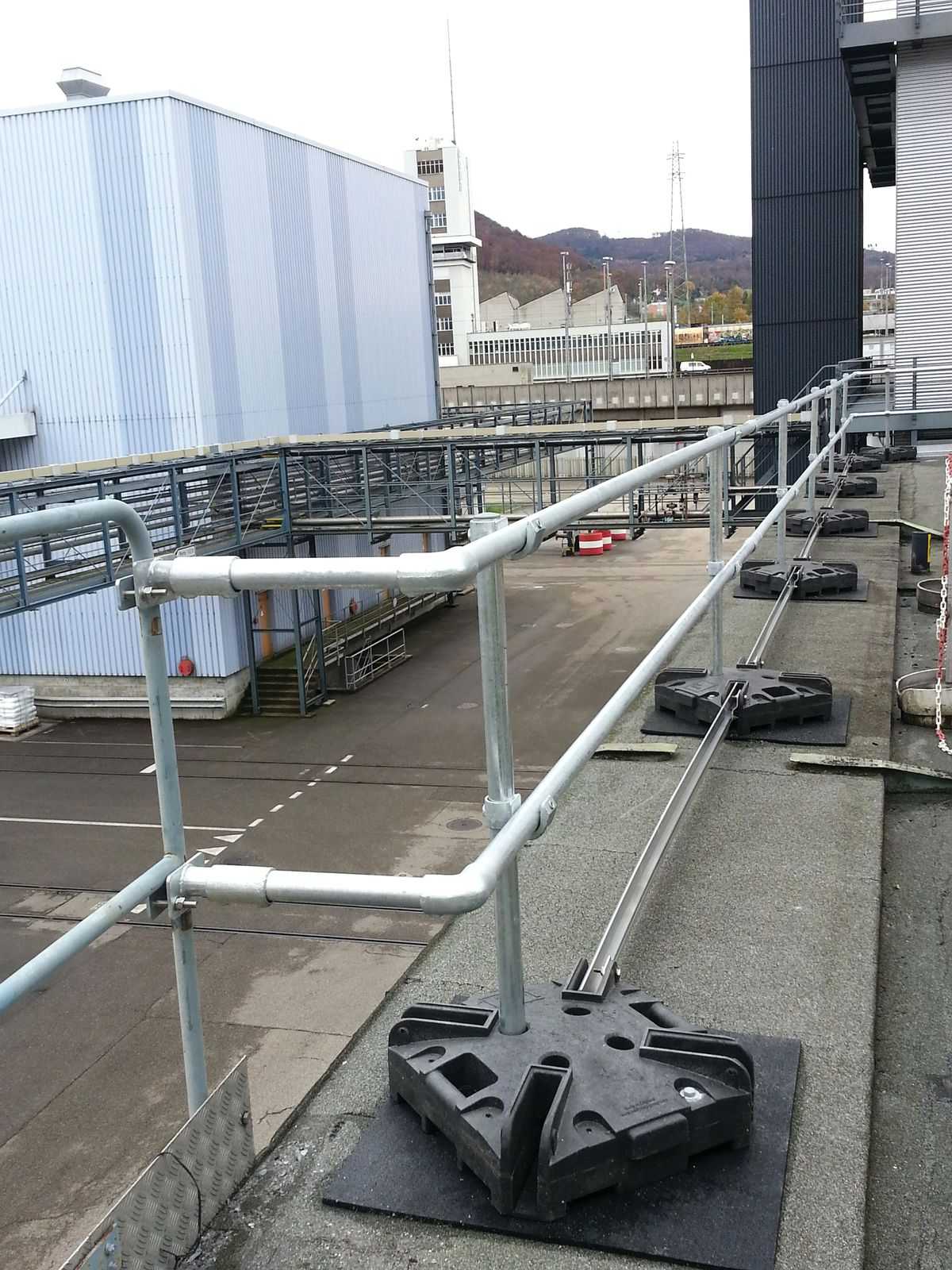

Kee Guard Railing For Narrow Roofs in the Workplace

See just how flexible our system is.

Highest standards for off-the-ground safety

OSHA 29 CFR 1910.23 (e)(1); (e)(3)(iv)
OSHA 29 CFR 1926.502 (b)(1)-(b)(14)
EN ISO 14122 Part 3
EN 13374 Class A
BS 13700 : 2021

HSG-33 Health & Safety in Roof Work
HSE INDG 284 “Working on roofs”
BS 6399: Part 2 1995 Wind Code
AS 1657 : 2018
Wind loading in accordance with AS/NZS 1170.2

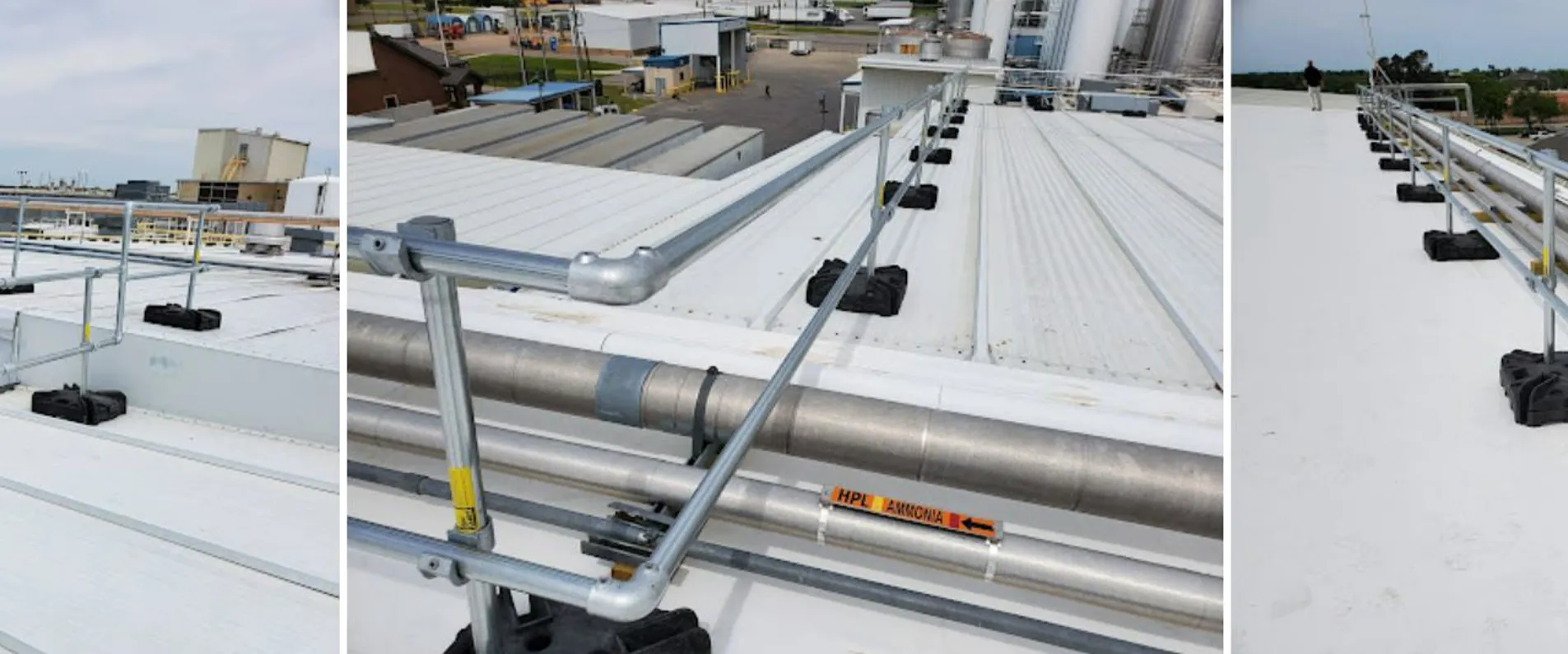

I have worked with Kee Safety on multiple projects. Knowledgeable, professional, and always eager to help. A great combination! ~ Kyle P.

Saputo Dairy, Sulphur Springs, TX

Kee Guard Downloads

Document	Format
Kee Guard - Certificate of Conformity to EN 14122-3	PDF Download
Kee Guard Architect Specification	PDF Download
Kee Guard Certificate of Conformity to EN 13374	PDF Download
Rooftop Safety Whitepaper	PDF Download
Fall Protection Solutions	PDF Download
Kee Guard Premium Brochure	PDF Download
Kee Guard Premium Operation & Maintenance Manual	PDF Download

Document	Format
Kee Guard - Certificate of Conformity to EN 14122-3	PDF Download
Kee Guard Certificate of Conformity to EN 13374	PDF Download

Document	Format
Kee Guard Architect Specification	PDF Download

Document	Format
Rooftop Safety Whitepaper	PDF Download

Document	Format
Fall Protection Solutions	PDF Download
Kee Guard Premium Brochure	PDF Download

Document	Format
Kee Guard Premium Operation & Maintenance Manual	PDF Download

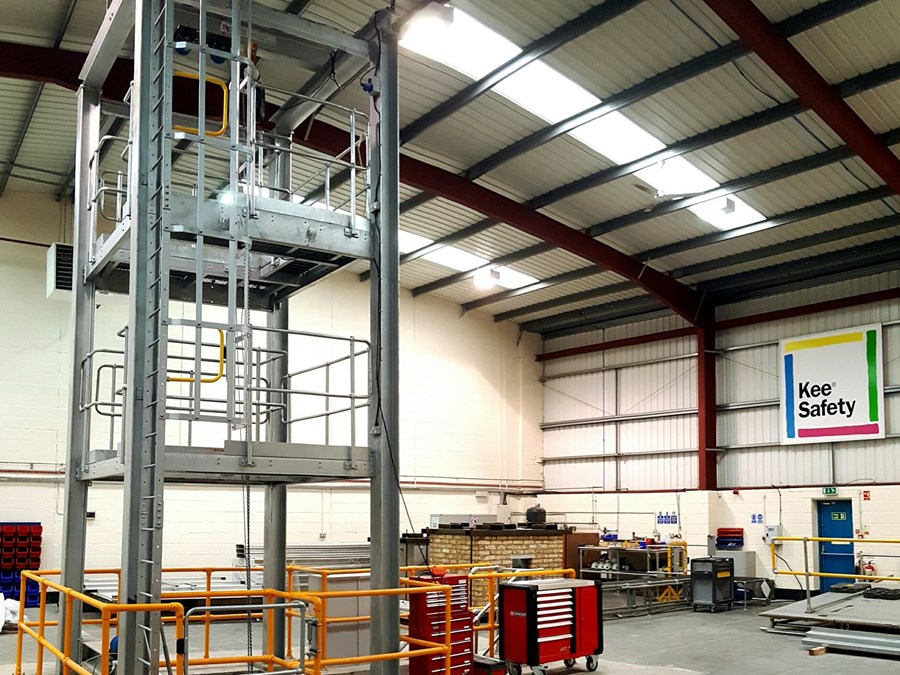

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centers at its global headquarters. Run by a team of industry experts, this state-of-the-art facility ensures that Kee Safety products meet the needs of its customers. Kee Safety is committed to driving new innovation with the purpose of separating people from hazards.

Learn About Our Test Centre

Frequently Asked Questions

- Are toeboards available on the Kee Guard system?

  Yes, a toeboard can be supplied at the customer’s request.
- Can Kee Guard be used as an anchor?

  The Kee Guard system is not intended as an anchor and cannot be used as an anchor or tie off point to support any workers or equipment suspended off the roof.
- Can the Kee Guard system be painted?

  Kee Guard components can be painted by the customer before or after installation. Kee Guard components are also available powder coated in any RAL color at the customer’s request (extra charges apply for powder coating). Powder coating takes place prior to shipment.
- Does the Kee Guard system comply with the current USA and EU safety regulations?

  The Kee Guard system has been tested to comply with and exceeds USA OSHA codes and EU EN standards.

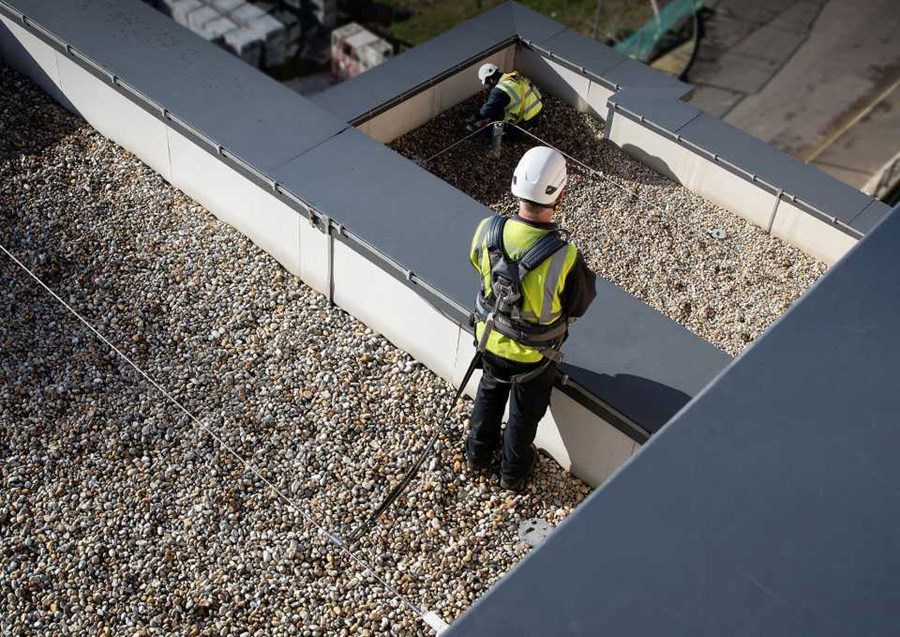

- Does the Kee Guard system offer advantages over a horizontal life line system or harness system?

  Yes. Kee Guard Roof Edge Fall Protection Railing System is a passive, collective fall protection system that is preferred by safety consultants. Lives have been lost in work-related falls resulting from workers not using harnesses properly. The Kee Guard system removes the potential of that risk. Harness systems require training and proper and regular use. The embedded anchor for a harness system could later leak and cause costly water damage. The worry of not having enough harnesses for rooftop workers is eliminated.
- How do I buy the Kee Guard system?

  Each Kee Guard System is individually engineered for your premises. Contact us directly with the information on this website.
- Is Kee Guard more expensive than using a harness/tie-off system?

  When you consider the ongoing cost of training and system re-certification, the installed cost of Kee Guard is competitive with horizontal life line systems.
- Is Kee Guard required by law?

  Building owners and employers are responsible for protecting their workers from any hazard encountered while on the job. In jobs requiring access to roofs for maintenance purposes, fall protection is usually required if workers will be exposed to a fall hazard.
- Does Kee Guard need to be inspected or maintained after installation?

  Once properly installed, the Kee Guard system is considered a permanent installation. We recommend that any fall protection system be inspected on a routine basis for maximum liability protection for the building owner.
- Can the Kee Guard system be installed on a sloped roof?

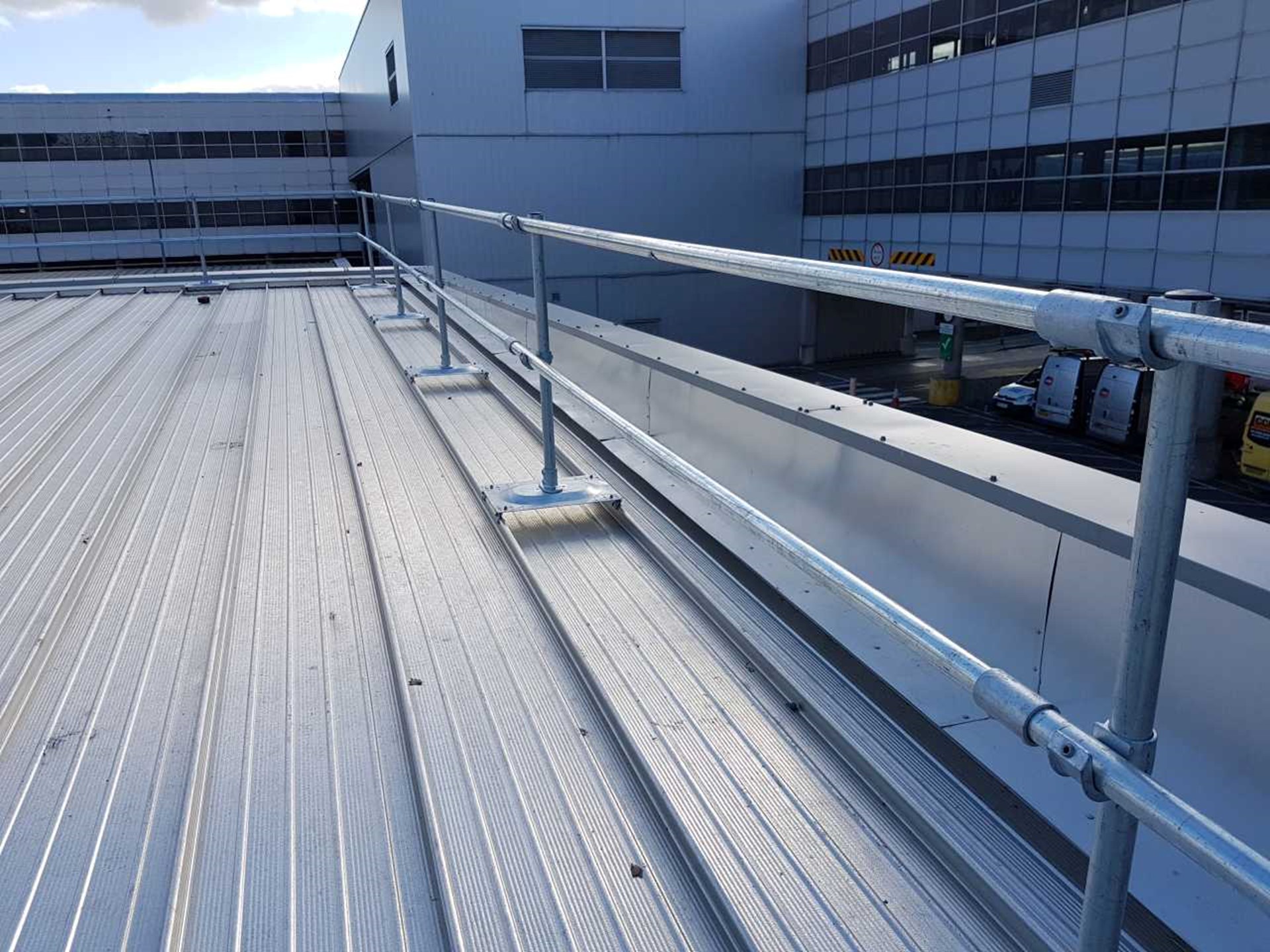

  Free-standing Kee Guard systems can be used on any style of flat roofs with a slope up to 10 degrees. Kee Guard option designed for metal profile and standing seam roofs can be installed on pitched cladded roofs up to 45°.
- How long does it take to install Kee Guard? Are special skills or tools required?

  With the use of the Kee Guard open style fitting (standard), two workers with minimal experience and simple hand tools can be installed up to twice as fast as most other systems. All materials should be delivered to the rooftop using a hoist, crane or other mechanical methods. No power tools are required.
- Is Kee Guard intended for temporary or permanent installation?

  The system is intended as a permanent fall protection solution, however since it is a modular system, the system can be disassembled and moved if needed or for maintenance tasks.
- Are all the materials used in the Kee Guard system protected from corrosion?

  Galvanised tube is used for vertical, horizontal and counterbalance supports and Kee Klamp fittings are all galvanised at our factory. The grub screws used to assemble the fittings and tubes together are all protected by Kee Koat^® which is a special corrosion-resistant coating. We also offer a Kee Guard aluminium option, with fittings and tube made from aluminium. Kee Guard fall protection system is engineered using special fittings and is designed to withstand a full range of outdoor conditions.
- What prevents the counterweights from sinking into tar/gravel roof surfaces in hot climates?

  Each KeeGuard counterbalance weighs only 13.3 Kg and has an insulating rubber pad on the underside which is installed at the factory. Each counterbalance is spaced sufficiently to make the entire system deliver less weight per square foot than the average worker who might have to walk on the roof.
- How does the Kee Guard system stay on the roof if it isn’t bolted through the roof membrane?

  The system employs a tested and proven counterbalance system, the Kee Guard system (Patents in effect) is a roof edge railing fall protection system that keeps the workers on the roof without endangering the roof membrane itself.

Trusted Fall Protection for Recognized Brands

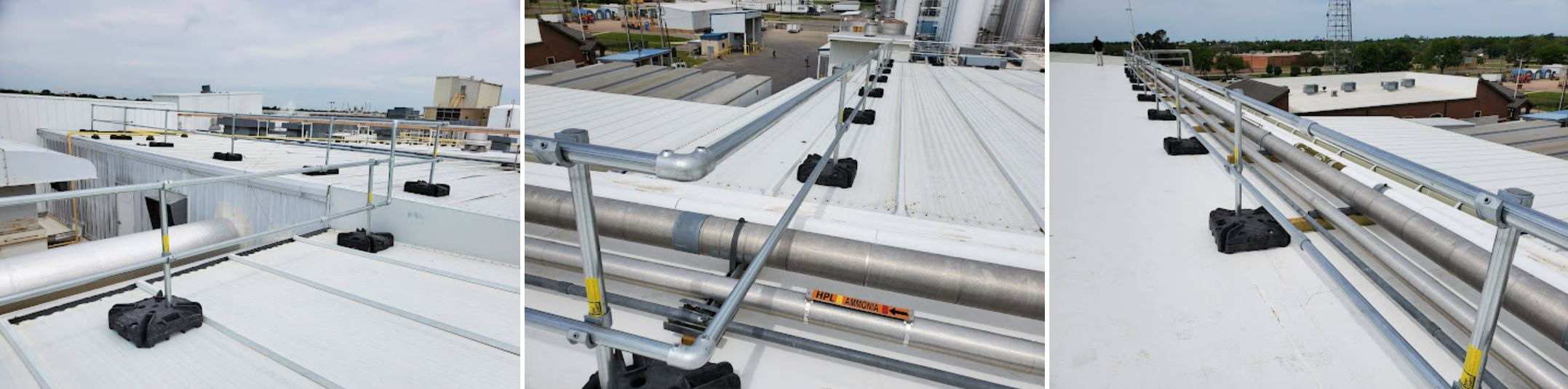

Design and Installation

We offer full design and installation services that include a complete on-site survey. We also produce comprehensive CAD drawings to help you visualize the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

Alternatively, you can spec and install KeeGuard yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
