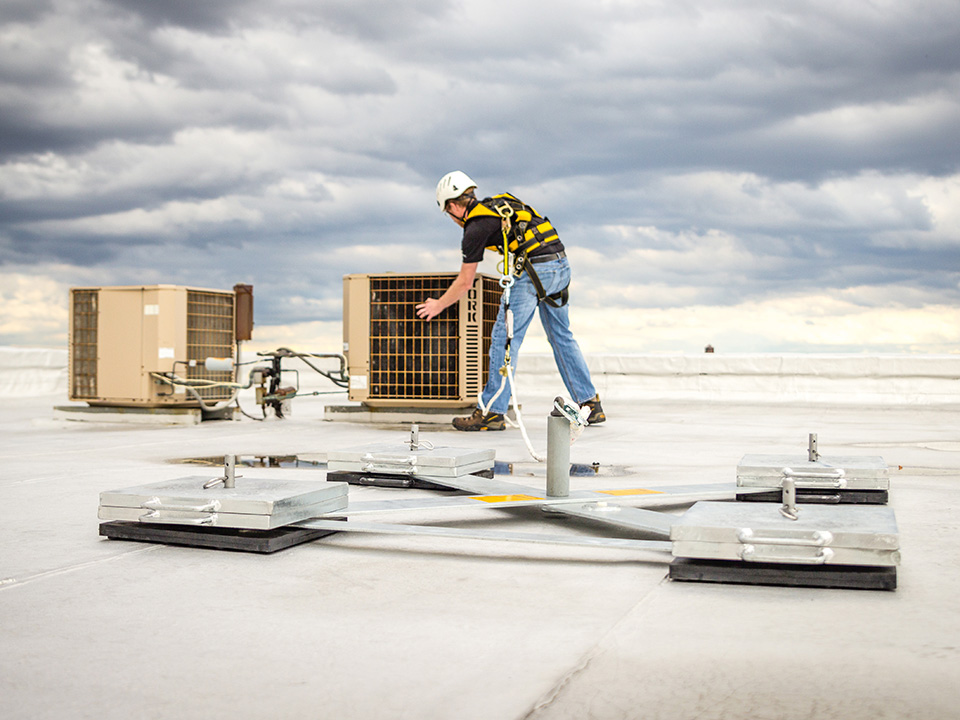

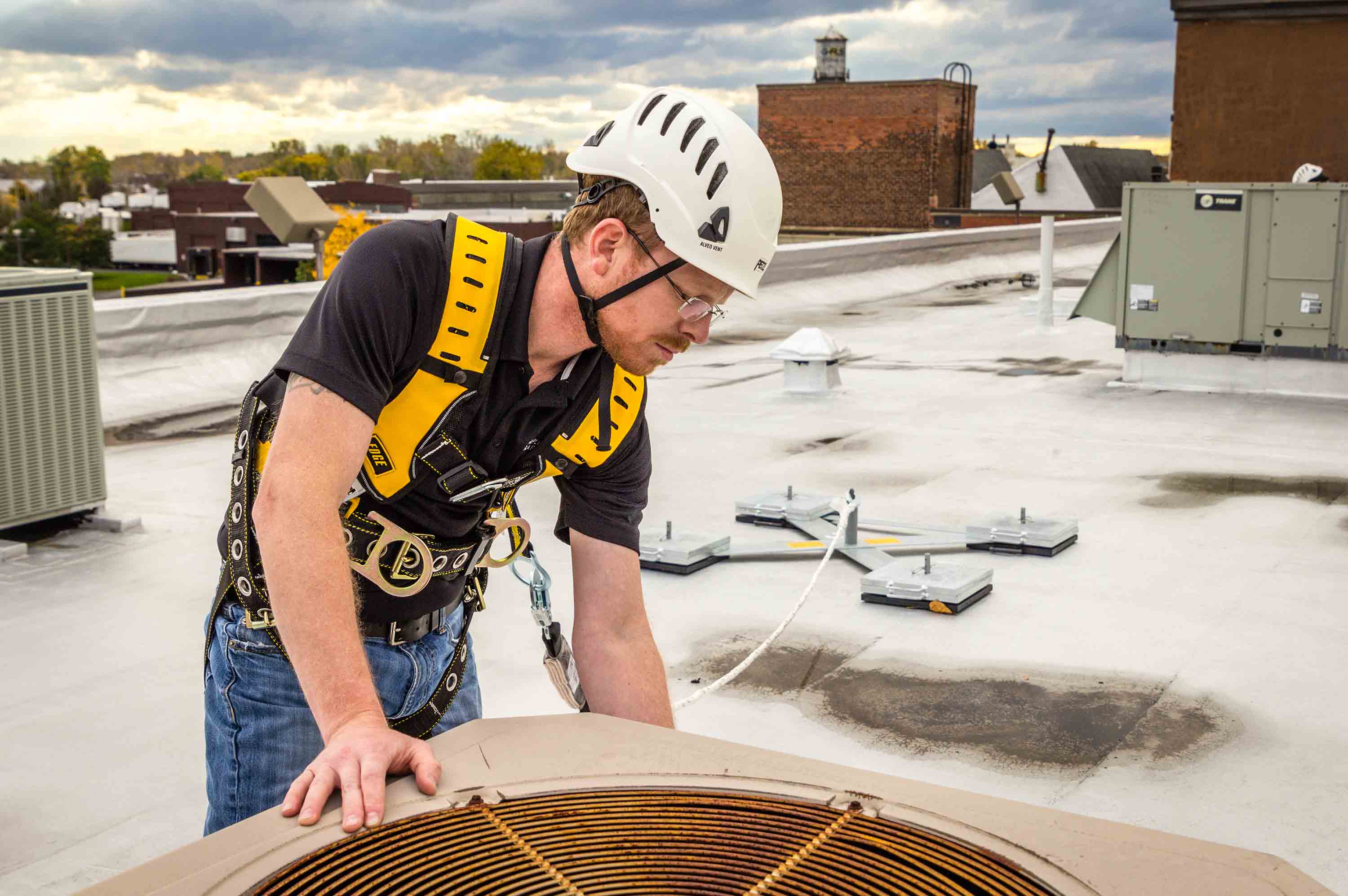

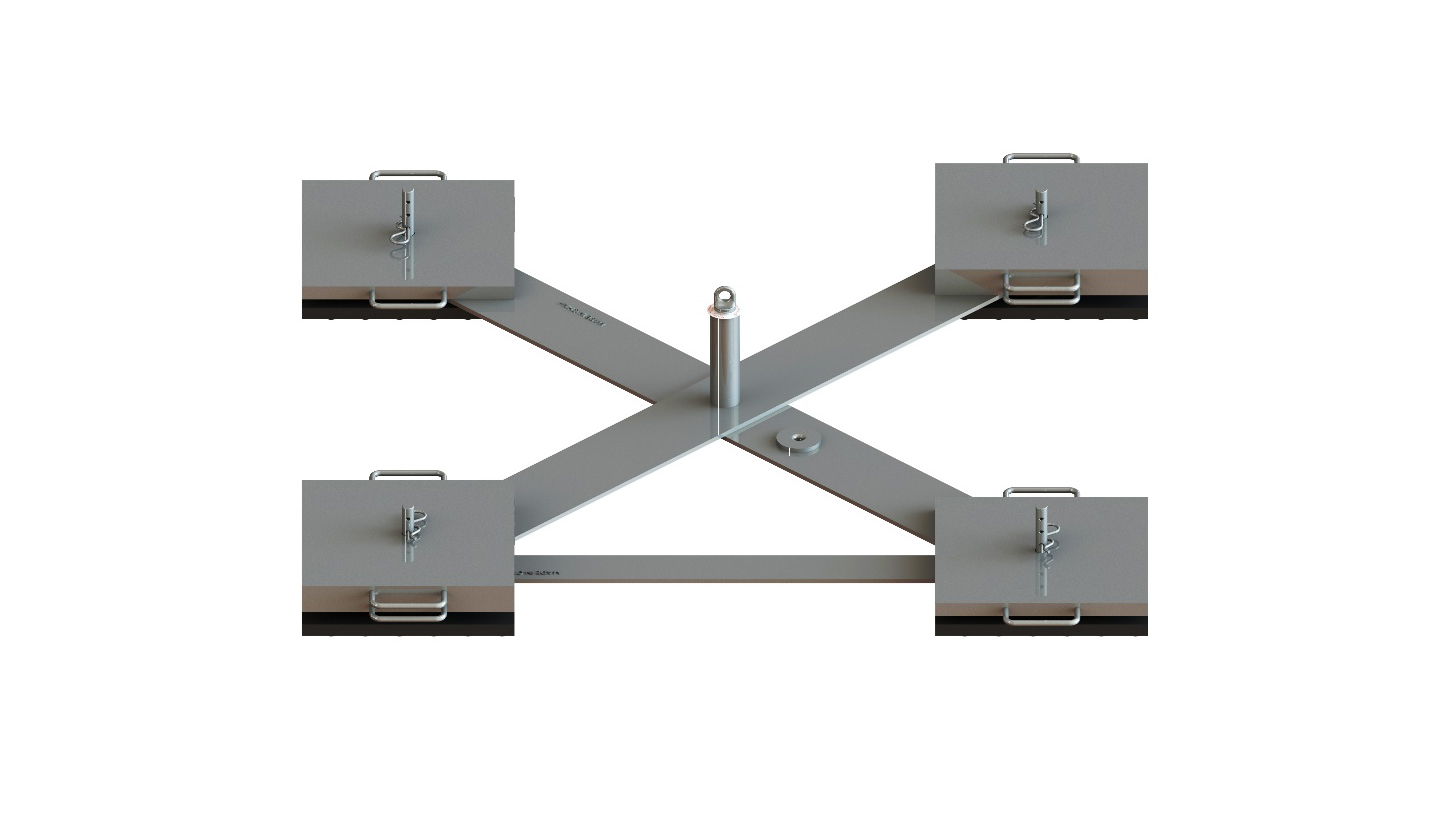

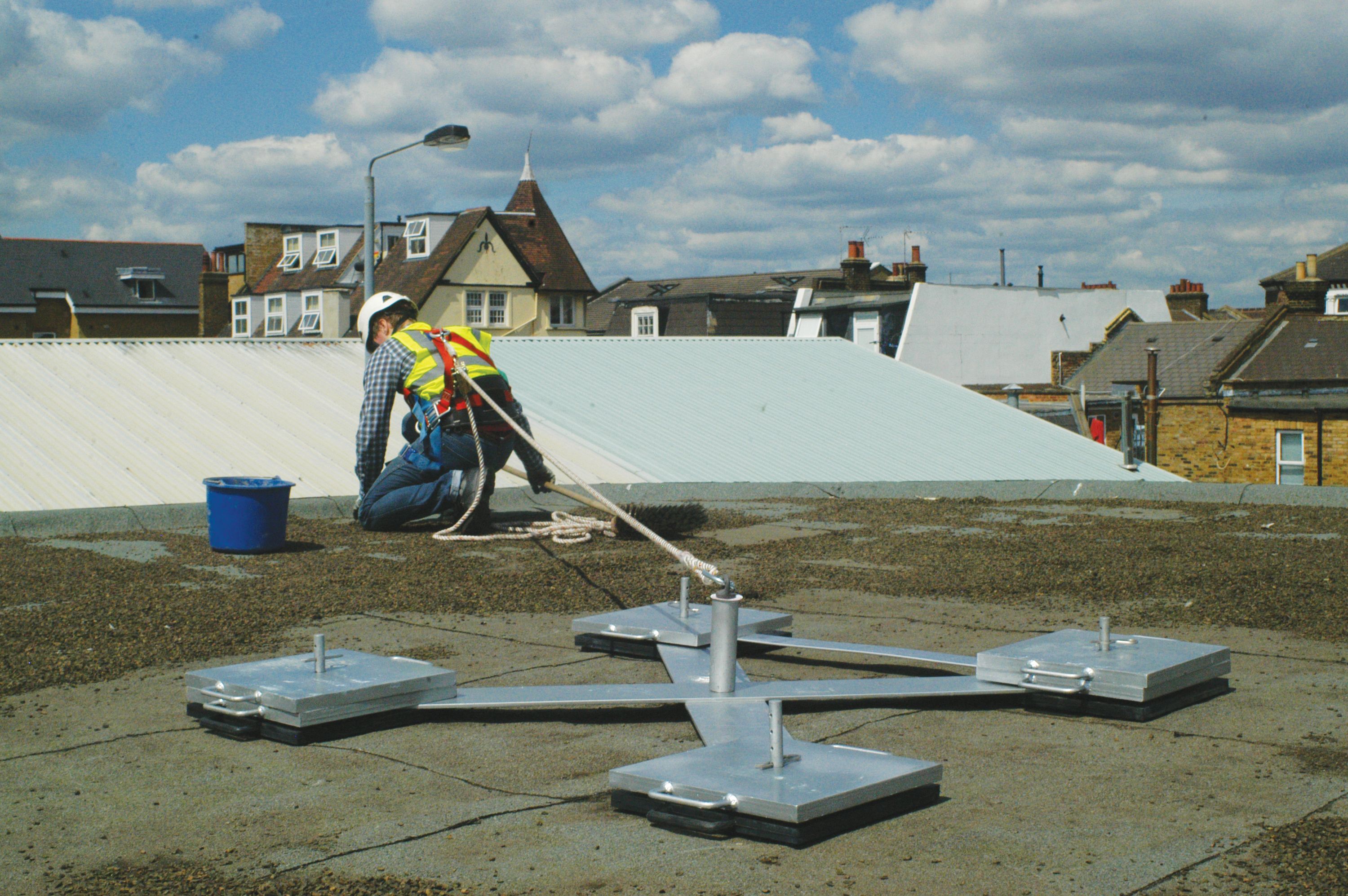

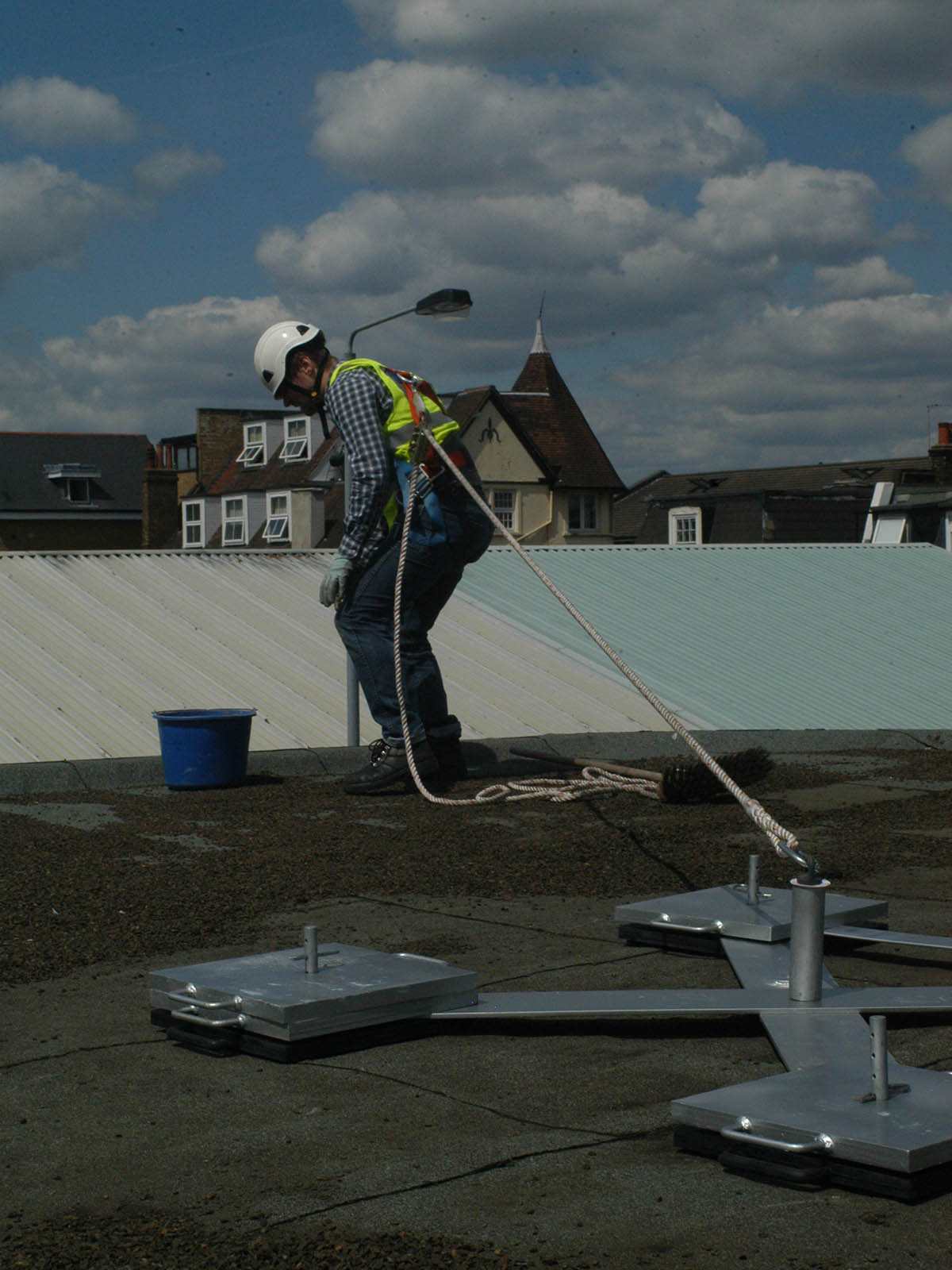

Kee Anchor® is a mobile, deadweight anchor device for use on roofs up to 5 degrees pitch, where the installation of collective protection or permanent anchor devices is not viable. The system uses a central pedestal which allows the attachment of a safety harness and lanyard and raises the height at which the arrest force is applied.
Benefits of Kee Anchor® Man Anchor System
Kee Anchor can be used on inclined roofs as well as flat roofs. It can also be used on industrial steel cladded pitched roofs when positioned opposite to where the work takes place. This should be used when the roof has a pitch greater than 5°, up to 15°.
Rubber-coated base weights are supplied with suction cups which applies additional friction to the roof membrane, further reducing any movement during a fall arrest event. There are also over 100 suction cups moulded to each rubber bonded weight to maximize grip.
Kee Safety recommends that whenever possible, the Kee Anchor is used in "Fall Restraint". This feature restricts anyone from getting close to the edge of the building and consequently, it is not possible for a fall to occur.
Engineered for all roof types including pitched metal profile and standing seam roofs up to a 15° slope.
Modular and Versatile
Can be used in conjunction with other products to provide a complete fall protection plan.
Easy to install
It’s simply installed with hand tools so there’s no need to buy additional equipment.
Rest assured that the Kee Anchor meets all of the requirements of the relevant standards and is safe to use.
Overview of Kee Anchor®
Compatible with Kee Line®

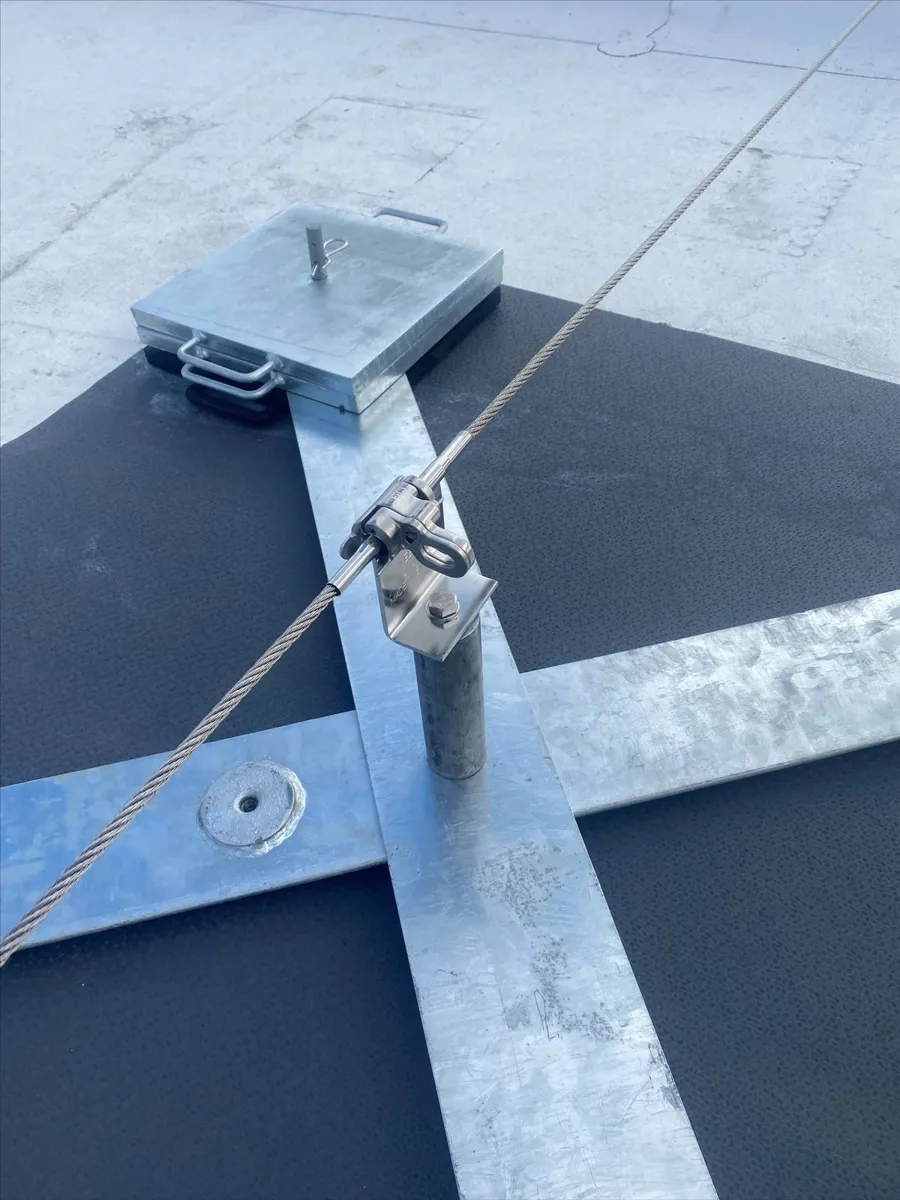

Need more than a single anchor point? Kee Anchor® anchor points can be used as the foundation for a Kee Line® horizontal lifeline system.
Kee Anchor® fully complies with Type E of BS EN 795: Protection against falls from height
Conforms to BS7883 - Code of practice for the design, selection, installation, use and maintenance of anchor devices conforming to BS EN 795 & ISO 14567
The unit is fully galvanized to BS EN ISO 1461: Hot Dip Galvanized Coatings Specification and test method
CE Approved to PPE Directive
Certified at our advanced testing facility
Kee Safety runs one of the world’s leading test and training centers at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.
Galvanized to BS EN ISO 1461. Rubber molded base weights prevent rubber pads 'peeling' at the edges. Over 100 suction cups molded into each rubber bonded weight to maximize grip. Kee Anchor does not penetrate the roof surface.
