Kee Klamp® Access Disability Railing

Access Disability Railing

Kee Klamp^® Access is designed to provide a smooth and continuous handrail that resists extreme temperatures and complies with legislation covering Disabled Access. This includes all the regulatory requirements related to the UK Equality Act 2010 and Building Regulation Approved Document M when designing and constructing balustrading and handrailing for commercial and public buildings, and the American Disability Act (ADA). It makes it the ideal choice for all new build and refurbishment projects.

Why do you need Kee Klamp Access Disability Railing ?

Highly compliant

Our range of cast iron fittings were created to meet all regulatory guidance in regards to the UK Equality Act (DDA) and Building Regulation Approved Document M, and the American Disability Act (ADA). It is a smooth and continuous handrail that is not affected by extreme temperatures, and complies with legislation covering disabled access.

Easy to install

There are no special tools or skills needed to install Kee Klamp Access handrail, making it a highly cost-effective option. It incorporates a total of 19 special fittings and is engineered with versatility in mind. These fittings can also be retrofitted thanks to add-on offset fittings, allowing for a new handrail addition to an existing structure.

Intelligent design

Although it’s a very simple system, there are smart design elements that ensure its usability and flexibility in many projects. It’s available in a range of RAL colors, which also ensure a ‘not cold to touch’ finish. There’s no welding needed. It can easily be upgraded when needed. And you get add an anti-bacterial coating.

Key features of Kee Klamp Access Disability Railing

Smooth Finish

The surface of the handrails is smooth, and the user can maintain a consistent grip and easily run their hand along the entire handrail.

Custom Designed

Our unique fittings allow our handrails for disabled to be custom designed to fit all ranges of ramp design from standard, to very complicated.

Fully Compliant

Our team will help guide you with design and installation, ensuring that your handrail is safe and compliant with legislation covering disabled access.

Easy to Install

Because our handrail for disabled does not require any welding, it can be easily installed on-site with a few common tools.

Get to know the Standards Covering Disabled Access

Handrails are essential in helping many people, particularly those with a disability and the elderly, gain safe access to a building and in order to do this they need to meet some very specific requirements. These include a tube diameter of between 40 and 45mm, provide a smooth and continuous handrail without any sharp edges or snag points, be slip resistant, provide a good visual contrast between the handrail and its background, and not be hot/cold to the touch. It’s the ideal choice for all new build and refurbishment projects.

Meets All Disability Standards

Kee Klamp Access Disability Railing’s range of tubular fittings is designed specifically to meet the requirements of the UK Equality Act (previously DDA) and Building Regulation Approved Document M, and the American Disability Act (ADA). So you can rest assured you are choosing a fully compliant railing system.

Specialised Fittings for Railings Compliant with Disabled Access Standards

These fitting enable the railing to be smooth and continuous.

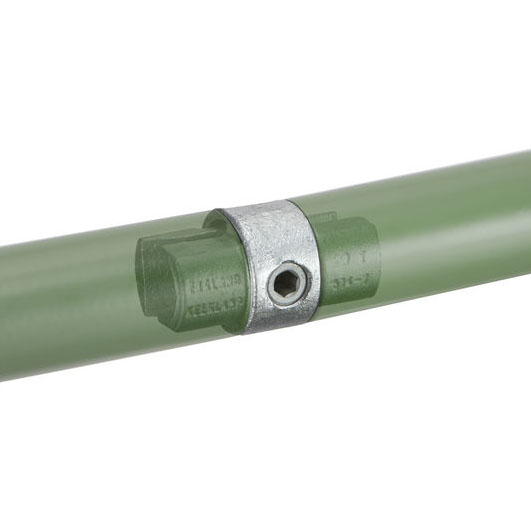

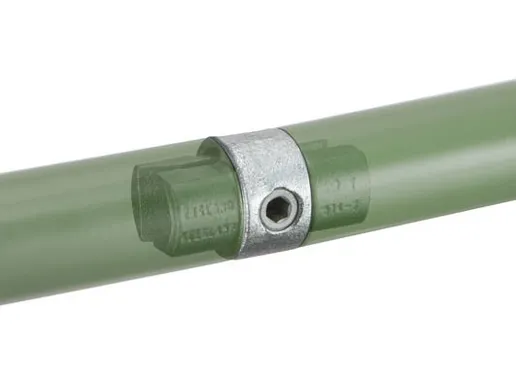

Internal Coupling

This fitting is used frequently in the system. It allows the fitting to be placed in line with the tube railing.

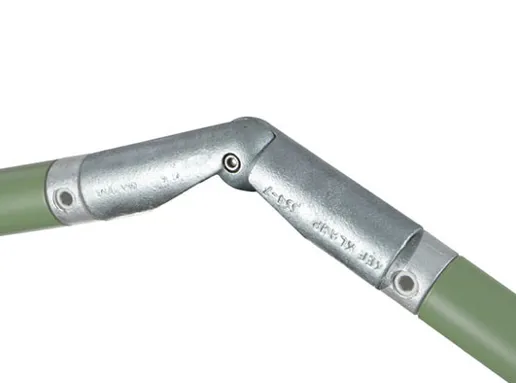

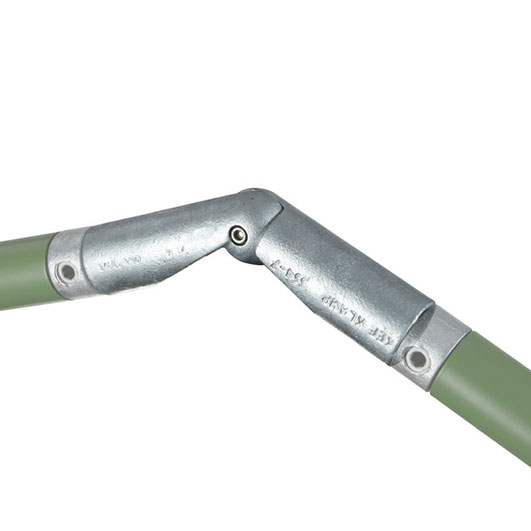

Coupling Compatible Fittings

These fittings are designed to couple together with the tube and internal couplings to form a complete smooth-rail system.

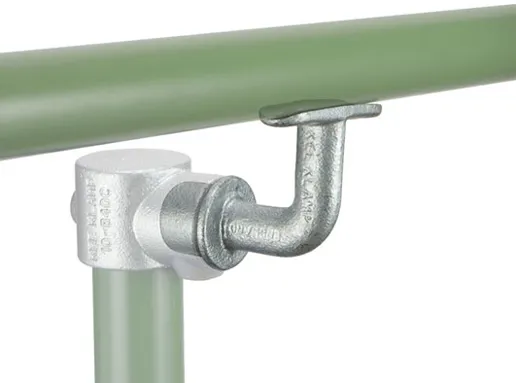

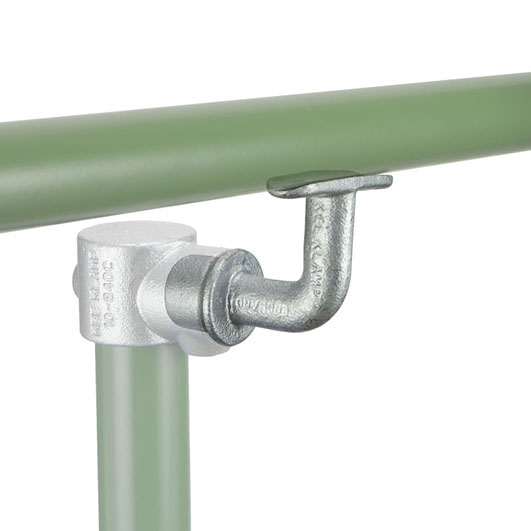

Cradle Fittings

These fittings cradle the tube so that the railing can pass over the fitting uninterrupted. Small tek-screws hold the railing in place.

Multiple Finish Options

Galvanised Steel

Fittings are made of galvanised cast iron to BS EN ISO 1461 for long-term maintenance.

Powder Coating

Durable, corrosion preventing polyester coating applied to already galvanised products; can be powder coated in a choice of RAL colours to meet the visibility and ‘not cold to the touch’ requirements of the building regulations.

Anti-bacterial Coating

Optional anti-bacterial coating is available.

A Full Array of Add-Options

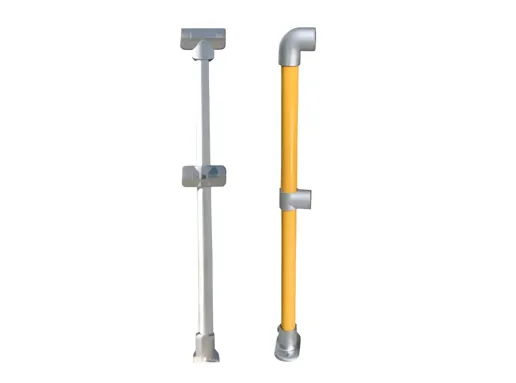

Modules

Pre-assembled modules for a simple and quick assembly ensuring constant barrier height. Available in a variety of sizes and styles to suit individual project requirements

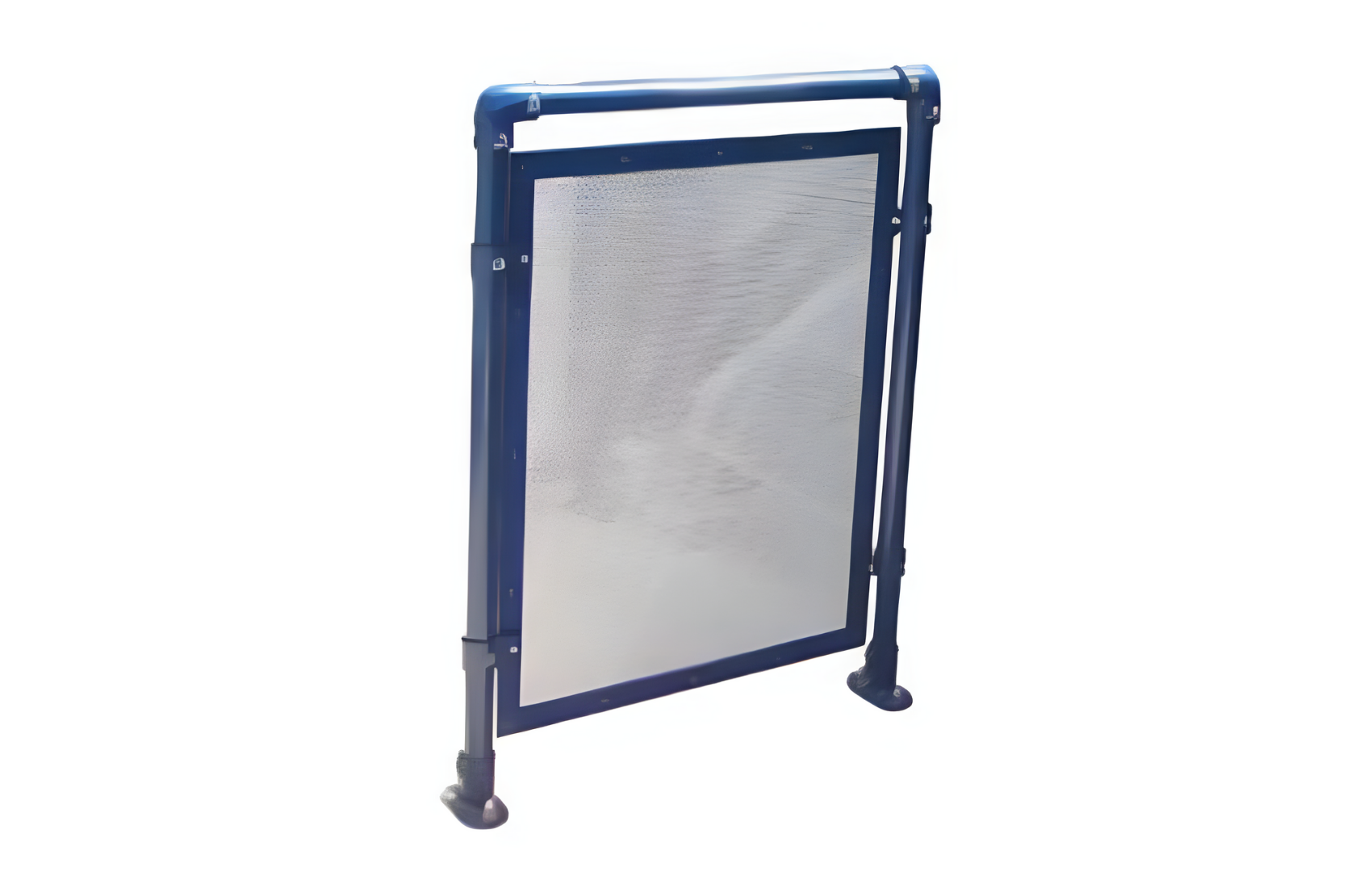

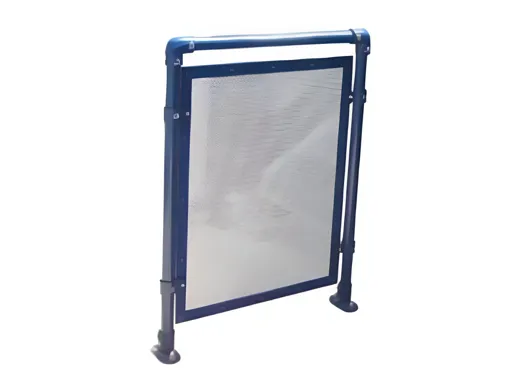

In-fill Panels

Panels come in a variety of materials, sizes, and finishes. The standard Panel is available in 50mm x 50mm size, maximum panel size is 240cm x 120cm. Smaller openings are also available. We also offer made-to-order Vertical Bar Infill Panels which are stronger than welded. Two standard panels are availbale, each designed to meet a different load case. The 1500mm wide panel will meet loading criteria up to 0.74kN/m, and the 1000mm wide panel will meet loading criteria up to 1.5kN/m. The standard panels come in a galvanised finish. They can also be powder coated to a specific RAL number.

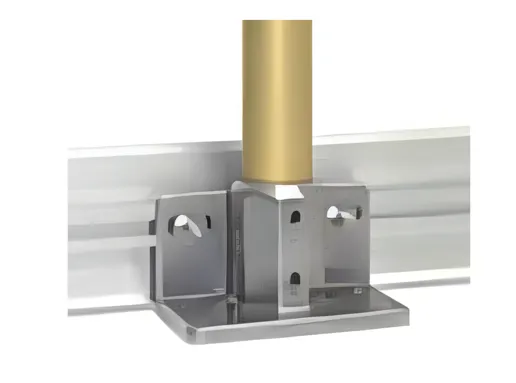

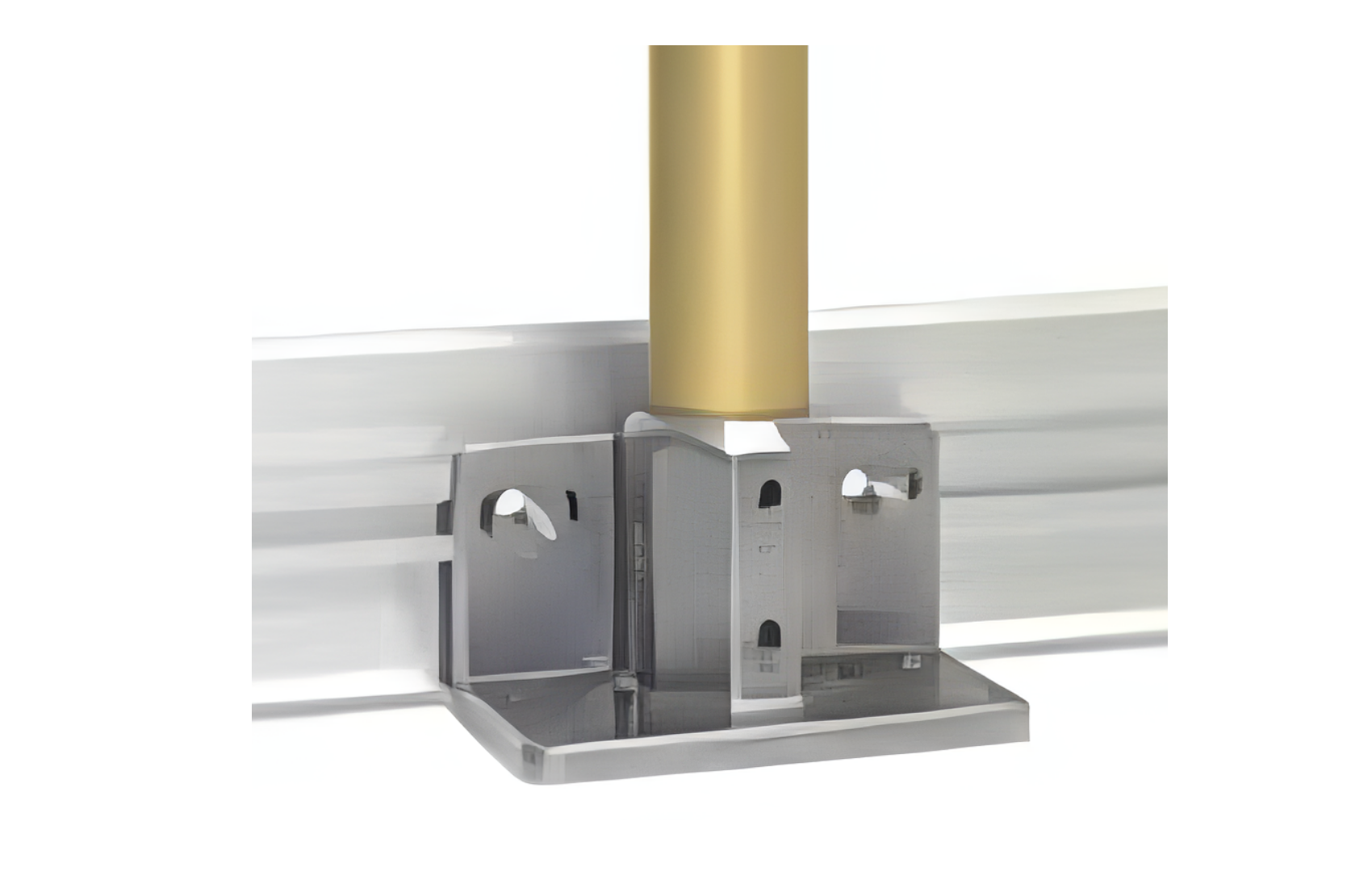

Toeboards

The toeboard is 102mm high and is made of aluminium. A channel in the toeboard accepts the bolt head of the mounting hardware, allowing ease in placement. Toeboard is sold by the linear metre. It can be supplied anodised if required. Mounting hardware is available separately.

View Kee Klamp^® Access in Action

Kee Klamp Access Downloads

Document	Format
Handrail for Disabled Access Guide	PDF Download
Kee Klamp Components Catalogue	PDF Download
Kee Safety Components Catalogue	PDF Download

Document	Format
Handrail for Disabled Access Guide	PDF Download
Kee Klamp Components Catalogue	PDF Download
Kee Safety Components Catalogue	PDF Download

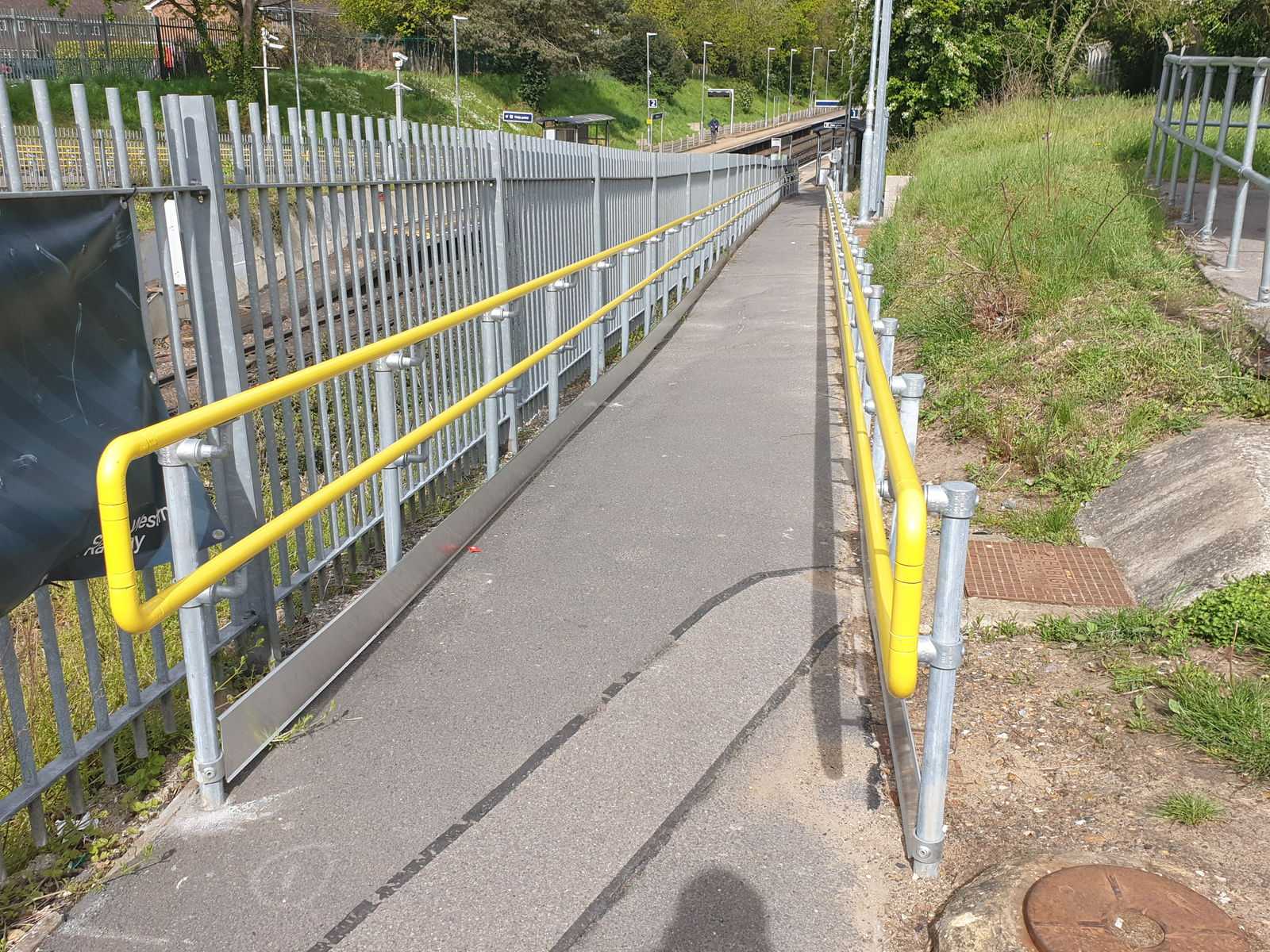

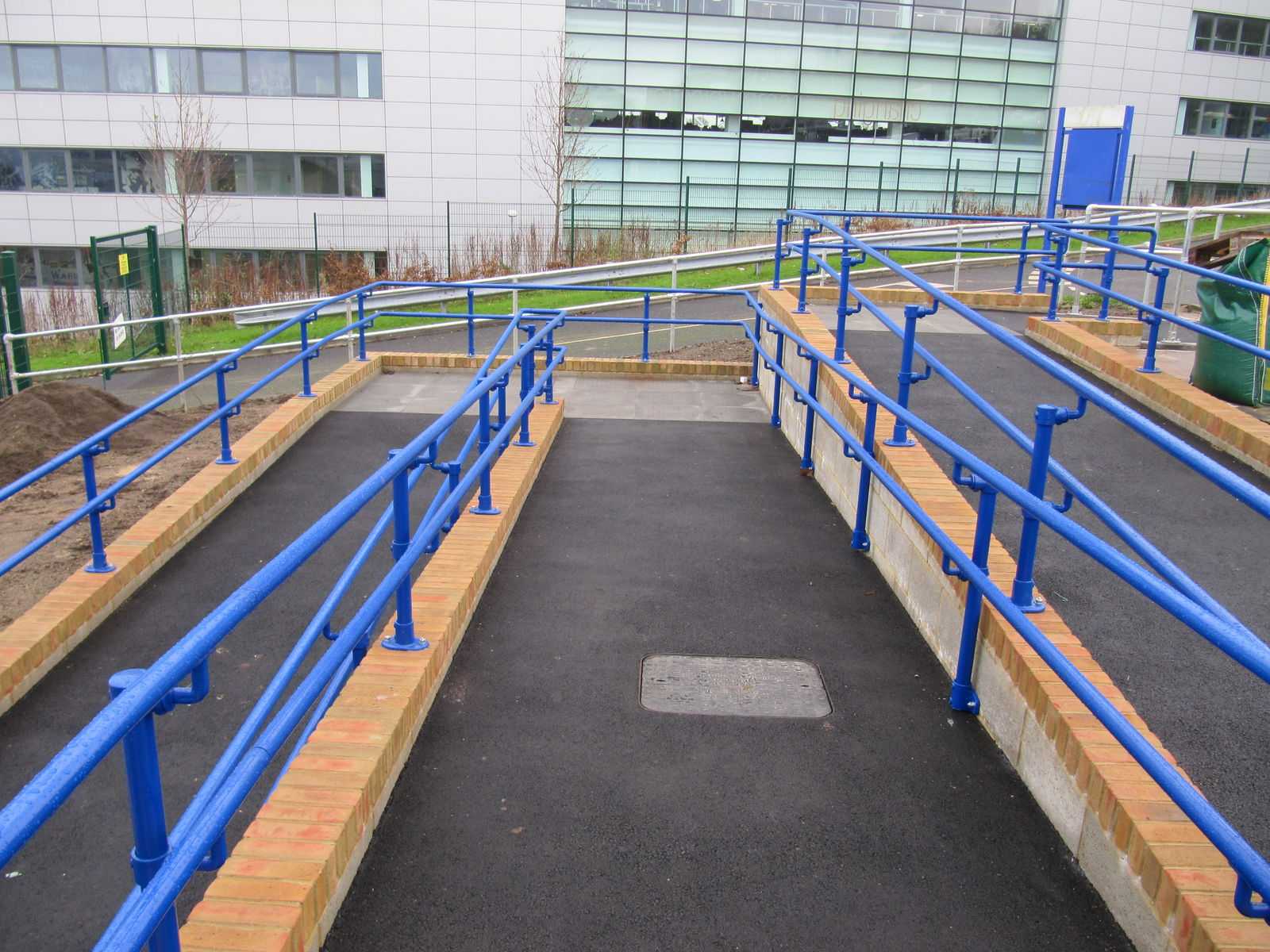

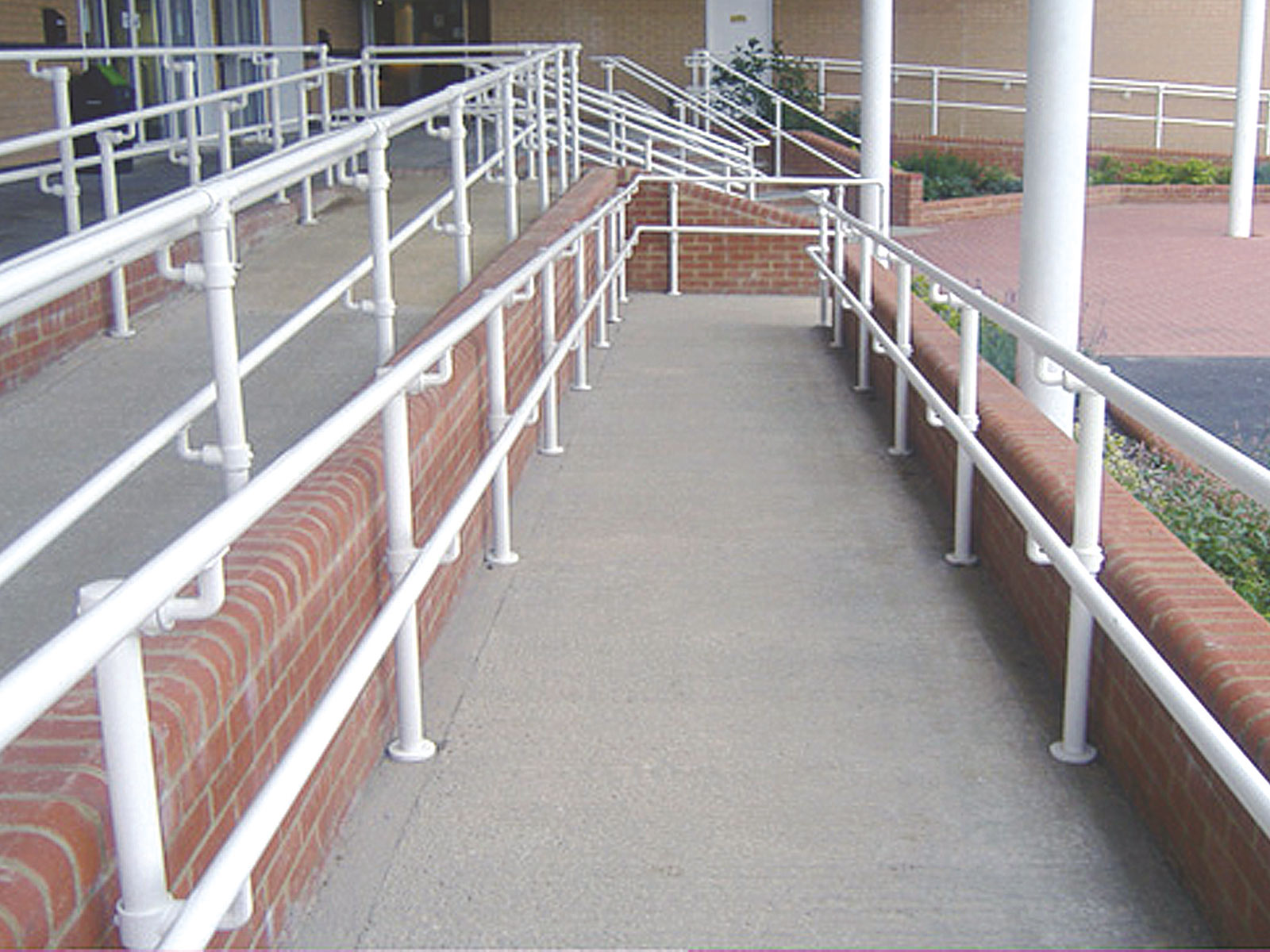

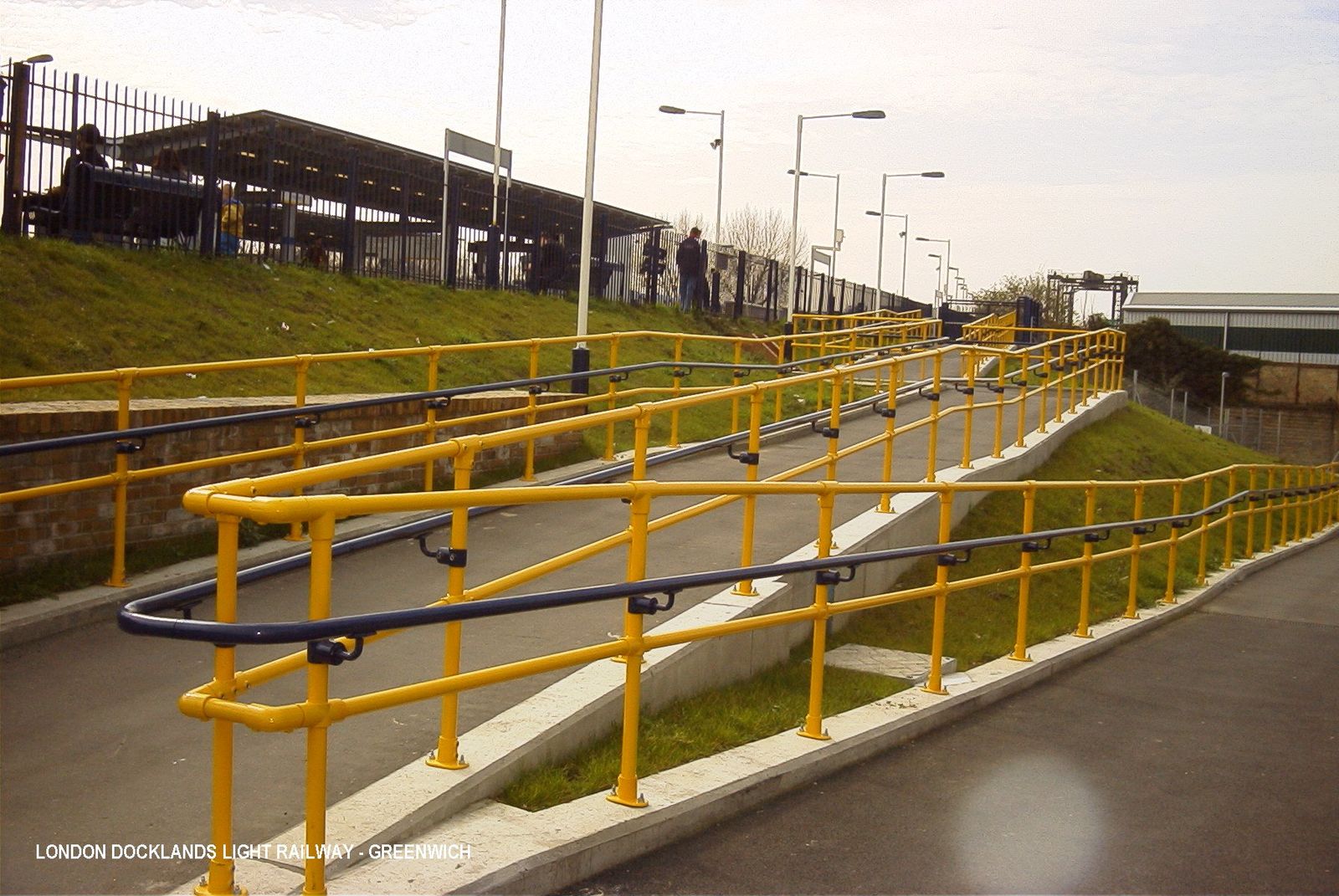

Examples of Kee Klamp^® Access

Services

Design and Installation

We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you visualise the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

Alternatively, you can specify and install most of our safety systems yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
