Kee Safety has modified the design of its Kee Gate range to meet the requirements of updated EN ISO 14122-3:2016 Safety of Machinery – Permanent means of access to machinery – Part 3: Stairs, Stepladders, and guard-rails. The new Kee Gate range retains the key elements of the existing safety gates but has been modified to meet the EN Standard.
Released in 2016, the revised EN ISO 14122-3 standard defines the requirements for safe access to machines. It applies to both stationary and mobile machinery where a fixed means of access is necessary. The standard specifies that when the height of a fall could exceed 500mm, a guardrail should be installed, and the chosen system needs to meet several dimensional requirements. It also notes that a self-closing gate should be used.

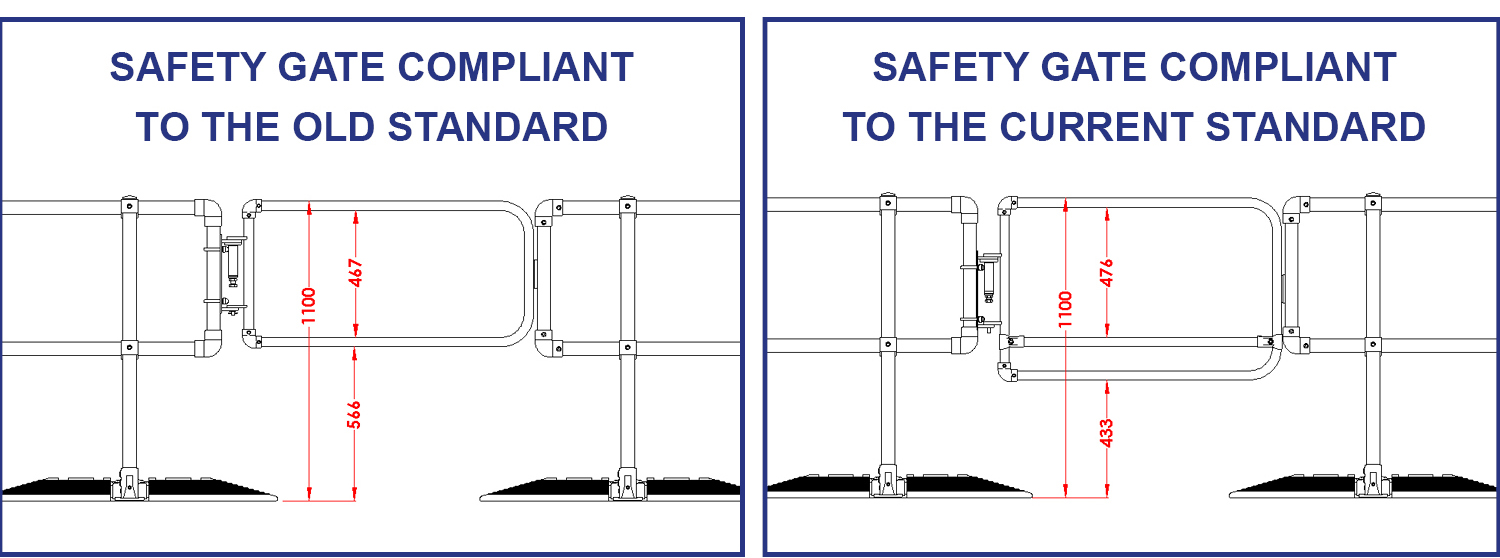

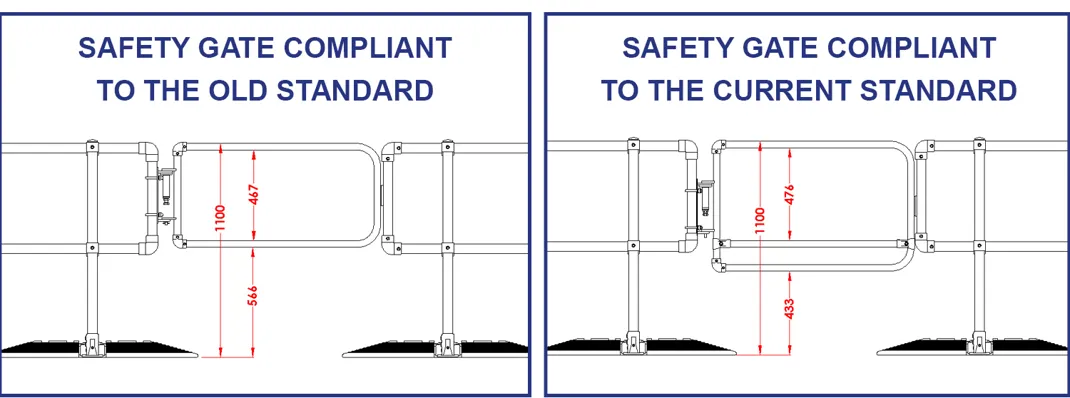

The revised standard states that the gap between both railings and the floor must not exceed 500mm. To remain compliant with this standard, Kee Safety has had to modify the design of its safety gates.
The Kee Gate design now features a larger D bend, which closes the gap between the bottom rail of the gate and the floor, whilst still allowing full-width adjustability along with a new mid rail that closes the gap between the top of the gate and the mid rail. The new gate is 668mm high, its mid rail is positioned 467mm from the top rail and a lower bottom rail is positioned 433mm from the floor. These modifications ensure that the Kee Gate range is compliant with the revised BSI standard.

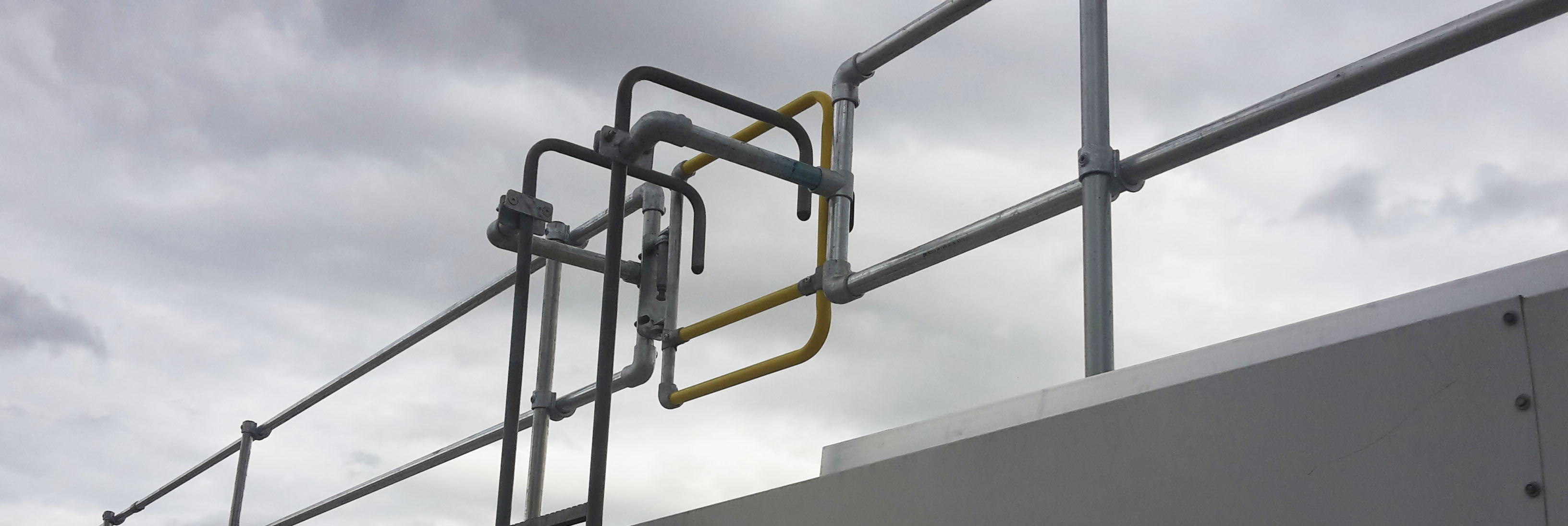

Designed to work both internally and externally, on the ladder and stair access points, roof hatches, walkways, and roof tops, Kee Gate ensures maintenance, inspection, and warehouse staff can fulfill their job, follow best practices and comply with current safety standards, without putting their safety at risk. Kee Gate safety gates are spring-loaded so can automatically close behind the user, providing an added level of security and overcoming the potential for human error. This type of system is the preferred solution to chains, bars, or sliding tubes, as these traditional forms of protection can lead to a hazardous void when used incorrectly.
The Kee Gate range is available in galvanised steel and if required can be powder coated in safety yellow. It is available with standard 'U' bolts for fixing uprights of 33.7, 42.4, and 48.3 mm diameter, enabling the gate to be fixed quickly to existing support structures, posts, or stringers. An additional fixing pack is provided which allows the gate to be fixed to square, flat, or angle uprights. Kee Gate is 1 meter wide and is designed to be trimmed on-site, saving companies the time and money it takes to fabricate their own gates.
As well as being compliant with EN ISO 14122-3:2016, Kee Gate also complies with the requirements of EN 13374 Class A and OSHA and is CE marked to EN 1090. The system has undergone extensive testing to ensure the total reliability of the gates. These include salt spray testing to ASTM B117-11 Neutral solutions over 200 hours to assess the coating’s corrosion resistance, life cycle testing to BS 6375-2:2009 Clause 6.5 – Opening and closing of Gate through 90 degrees 50,000 cycles, and Abuse Testing where 9 x 25kg weights were suspended from the gate to test what happens if pressure is applied. This ensures durability, superior corrosion resistance, and defense against signs of wear.
More information about Kee Safety self-closing safety gates is available on the Kee Gate product page.
While the self-closing gate has its uses when correctly specified, it may not be suitable for all applications. Our gates come in a variety of sizes and finishes to ensure that there is an option to suit your project.
